SCD 010-006-030 AP6 IC908

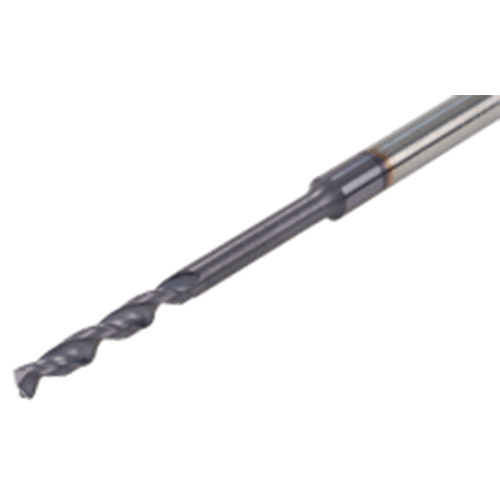

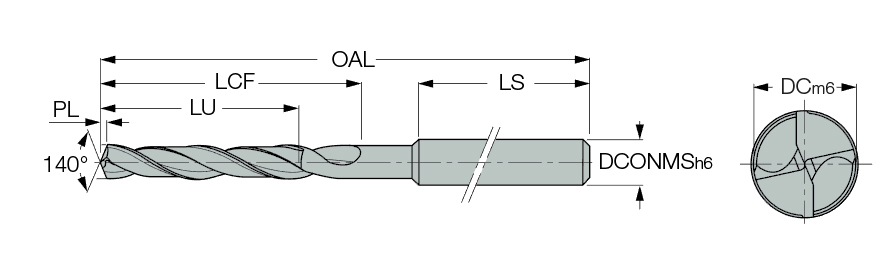

SC Drill; 1 mm Dia. × 3 mm Shank Dia. × 46 mm OAL × 8 mm LCF ; 6xD ; TiAlN ; Series 2464
| Drill Bit Size / Cutting Diameter (DC) | 1 mm | Cutting Edge Material | Carbide |
| Drill Bit Size / Cutting Diameter (DC) - Inch | 0.0394″ | Tool Type | solid carbide Drills |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 1 mm | Grade | IC908 |
| Length Group | 6xD | Measurement Type | Metric |
| Coating | TiAlN | Series/List # | 2464 |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Usable Length (LU) | 6 mm |
| Application | | Drilling | | Length Chip Flute (LCF) | 8 mm |
| Connection Diameter Machine Side (DCONMS) | 3 mm | Overall Length (OAL) | 46 mm |
| Coolant Supply Property (CSP) | External | Flute Count (NOF) | 2 |
| Point Length (PL) | 0.18 mm | Cutting Direction (HAND) | Right Hand |
| Number of Teeth | 2 | Body Material | Carbide |
| Shank Length (LS) | 33.8 mm | Connection Code Machine Side (CCMS) | Cylindrical |
| Shank Type | Round | Shank Diameter Tolerance (TCDMM) | h6 |
| Shape | Jobber Drill |
Product Features
| Family Description | DIN 6537 solid carbide drills without coolant holes, drilling depth 6xD | Country of Origin | S.Korea |
Shipping Info
Package Weight
0.024
