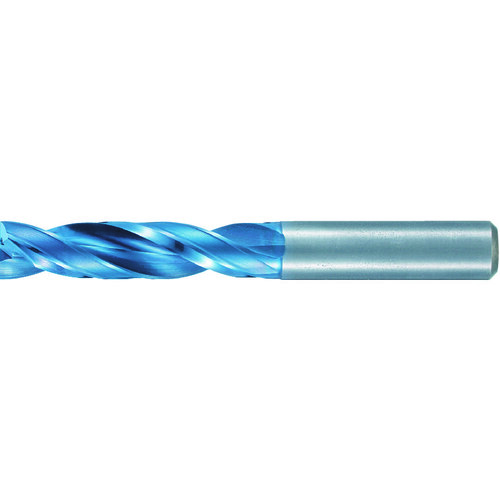

5.1 mm Dia. × 6 mm Shank × 24 mm Flute Length × 82 mm OAL, 3xD, 180°, 3xD Flute, External Coolant, Solid Carbide Drill
SC Drill; 5.1 mm Dia. × 6 mm Shank Dia. × 82 mm OAL × 24 mm LCF ; 180 Degrees ; 3xD
| Drill Bit Size / Cutting Diameter (DC) | 5.1 mm | Shape | Solid Carbide |
| Decimal Equivalent | 0.2008″ | Cutting Edge Material | Carbide |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 5.1 mm | Tool Type | Solid Carbide Drills |
| Length Group | 3xD | Point Shape | Square End |
| Connection Diameter Machine Side (DCONMS) | 6 mm | Measurement Type | Metric |
| Coolant Supply Property (CSP) | External | Length Chip Flute (LCF) | 24 mm |
| Point Angle (SIG) | 180 Degrees | Overall Length (OAL) | 82 mm |
Product Features
| Remarks | Suitable for drilling in: Structural Steel, Carbon Steel, Pre-Hardened Steel, Alloy Steel, Hardened Steels, Mold Steels 40~50HRC Hardened Steel, Stainless Steel, Titanium Alloys, Nickel Alloys, Cast Iron, Aluminum Alloys, Copper Alloys | Country of Origin | Japan |
Shipping Info
Package Weight
0.062
