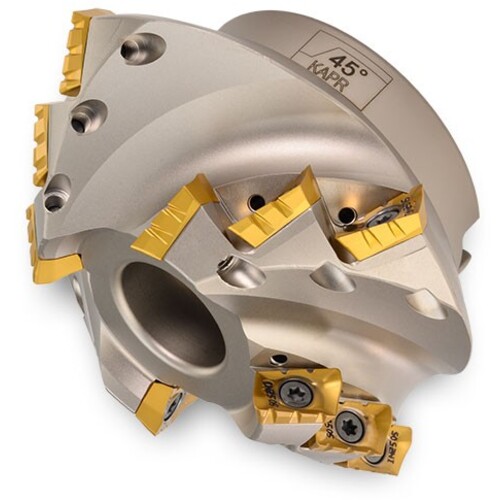

22M3R045050F2R00
| Application | | Chamfering | Slanted Shoulder & Chamfer | | Connection Thread Size | M10 |
| Cutting Diameter (DC) | 1.772″ | Flute Count (NOF) | 4 |
| Cutting Item Count (CICT) | 4 | Cutting Direction (HAND) | Right Hand |
| Depth of Cut Maximum (APMX) | 1.189″ | Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 1.063″ | Functional Length (LF) | 1-1/4″ |
| Face Effective Cutting Edge Count (ZEFF) | 2 Teeth | Body Material | Steel |
| Overall Length (OAL) | 1.968″ | Tool Cutting Edge Angle (KAPR) | 60 Degrees |
Product Features
| Family Description | 13mm Insert with 2 indexes All Eff. / RH Helix | Country of Origin | Germany |
Shipping Info
Package Weight
1.79
