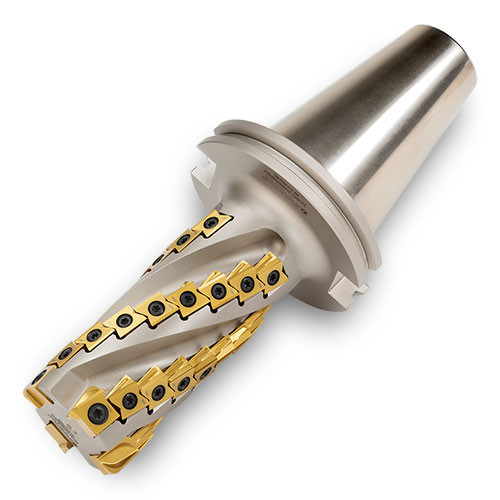

2XJ3J-2508048R01
| Application | | Facing | Shouldering | Slotting | | Connection Thread Size | M10 |
| Cutting Diameter (DC) | 2-1/2″ | Flute Count (NOF) | 5 |
| Cutting Item Count (CICT) | 5 | Cutting Direction (HAND) | Right Hand |
| Depth of Cut Maximum (APMX) | 6.099″ | Measurement Type | Inch |
| Face Effective Cutting Edge Count (ZEFF) | 5 Teeth | Functional Length (LF) | 8″ |
| Usable Length (LU) | 6-5/8″ | Body Material | Steel |
| Overall Length (OAL) | 12″ | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
Product Features
| Family Description | Dovetail Insert Seating for Insert Stability Face Station Insert Corners: .031″, .062″, .094″, .125″, .250″ R | Country of Origin | Usa |
Shipping Info
Package Weight
0.025
