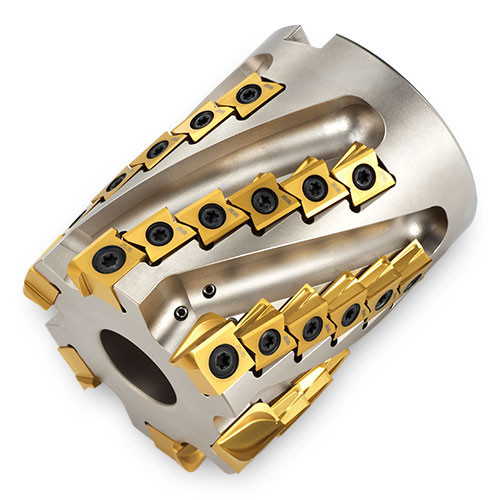

2XJ3J-25030D3R01
| Application | | Facing | Shouldering | Slotting | | Connection Thread Size | M10 |
| Cutting Diameter (DC) | 2-1/2″ | Flute Count (NOF) | 5 |
| Cutting Item Count (CICT) | 5 | Cutting Direction (HAND) | Right Hand |
| Depth of Cut Maximum (APMX) | 2.431″ | Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 1″ | Body Material | Steel |
| Face Effective Cutting Edge Count (ZEFF) | 5 Teeth | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Overall Length (OAL) | 3″ | Body Diameter (BD) | 2.415″ |
Product Features
| Family Description | Dovetail Insert Seating for Insert Stability Face Station Insert Corners: .031″, .062″, .094″, .125″, .250″ R | Country of Origin | USA |
Shipping Info
Package Weight
0.004
