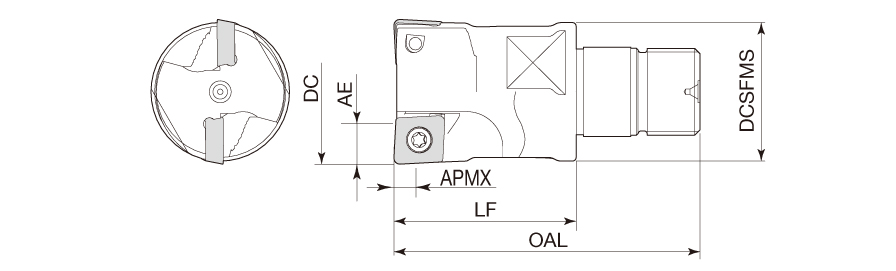

HZP12032R
| Application | | Plunging & Recessing | | Head Length (LH) | 30 mm |
| Cutting Diameter (DC) | 32 mm | Measurement Type | Metric |
| Cutting Item Count (CICT) | 2 | Tool Type | 90 Indexable Endmills |
| Depth of Cut Maximum (APMX) | 0.28″ | Functional Length (LF) | 1-1/4″ |
| Face Effective Cutting Edge Count (ZEFF) | 2 Teeth | Body Material | Steel |
| Overall Length (OAL) | 30 mm | Tool Cutting Edge Angle (KAPR) | 2 Degrees |
| Connection Thread Size | M10 |
Product Features
| Family Description | "Z-feed" plunging cutter for roughing operation with screw clamp, with T-Bar Modular System (TMS) | Country of Origin | Japan |
Shipping Info
Package Weight
0.765
