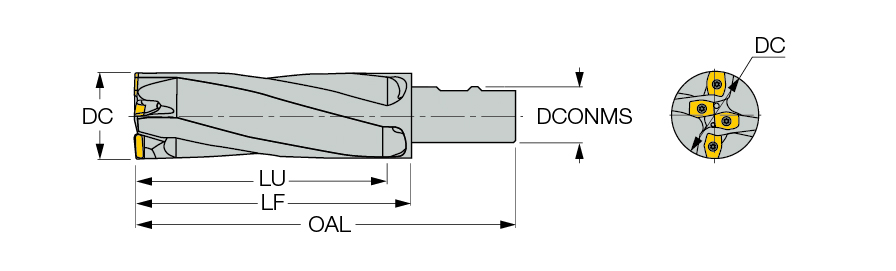

PH D50-H140-A-W32-13*
| Application | | Counter Boring | Drill Mill | Plunging & Recessing | Side Plunging | | Shank Type | Weldon |
| Cutting Diameter (DC) | 50 mm | Coolant Supply Property (CSP) | Through Hole |
| Cutting Item Count (CICT) | 4 | Cutting Direction (HAND) | Right Hand |
| Depth of Cut Maximum (APMX) | 0.28″ | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 32 mm | Tool Type | Plungers cutters |
| Face Effective Cutting Edge Count (ZEFF) | 2 | Functional Length (LF) | 160 mm |
| Usable Length (LU) | 140 mm | Body Material | Steel |
| Overall Length (OAL) | 220 mm | Tool Cutting Edge Angle (KAPR) | 2 Degrees |
| Connection Thread Size | M10 |
Product Features
| Family Description | High productivity center cutting plungers with spiral flutes carrying PLHT 1305-PDX inserts. | Country of Origin | Israel |
| Remarks | For adaptation, click on "More Info". |
Shipping Info
Package Weight
3.142
