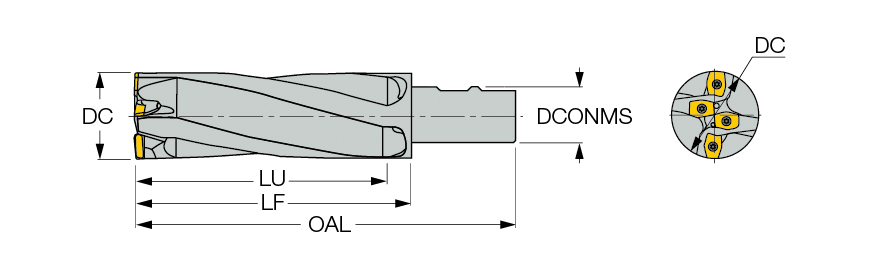

PH D2.00-H055-A-W1.25-13
| Application | | Counter Boring | Drill Mill | Plunging & Recessing | Side Plunging | | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Diameter (DC) | 2″ | Cutting Direction (HAND) | Right Hand |
| Cutting Item Count (CICT) | 4 | Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 1-1/4″ | Tool Type | Plungers cutters |
| Face Effective Cutting Edge Count (ZEFF) | 2 | Functional Length (LF) | 6.31″ |
| Usable Length (LU) | 5-1/2″ | Body Material | Steel |
| Overall Length (OAL) | 8.59″ | Tool Cutting Edge Angle (KAPR) | 2 Degrees |
| Connection Thread Size | M10 | Connection Code Machine Side (CCMS) | Weldon |
| Shank Type | Weldon |
Product Features

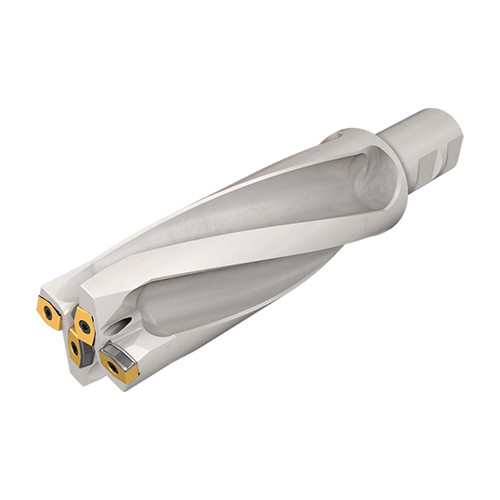

| Family Description | High productivity center cutting plungers with spiral flutes carrying PLHT 1305-PDX inserts. | Country of Origin | Israel |
| Remarks | For adaptation, click on More Info. |
Shipping Info
Package Weight
3.247
