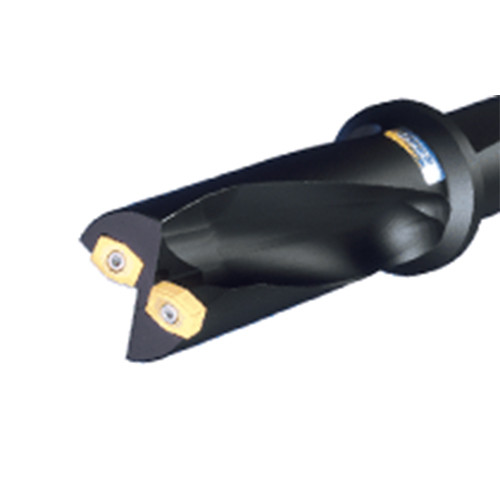

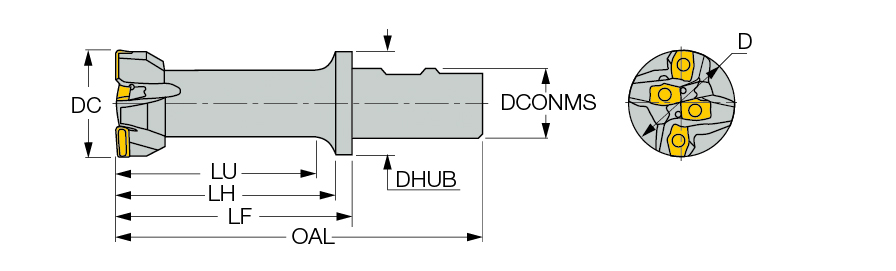

PH D1.50-H035-W1.25-13
| Application | | Counter Boring | Drill Mill | Plunging & Recessing | Side Plunging | | Cutting Direction (HAND) | Right Hand |
| Cutting Diameter (DC) | 1-1/2″ | Measurement Type | Inch |
| Cutting Item Count (CICT) | 2 | Tool Type | Plungers cutters |
| Connection Diameter Machine Side (DCONMS) | 1-1/4″ | Functional Length (LF) | 4.43″ |
| Face Effective Cutting Edge Count (ZEFF) | 1 | Body Material | Steel |
| Overall Length (OAL) | 6.72″ | Tool Cutting Edge Angle (KAPR) | 2 Degrees |
| Connection Thread Size | M10 | Body Diameter (BD) | 1.94″ |
| Shank Type | Weldon | Connection Code Machine Side (CCMS) | Weldon |
| Coolant Supply Property (CSP) | Coolant Thru |
Product Features
| Family Description | High productivity center cutting plungers with PLHT 1305-PDX inserts. | Country of Origin | Israel |
| Remarks | For adaptation, click on More Info. |
Shipping Info
Package Weight
2.227
