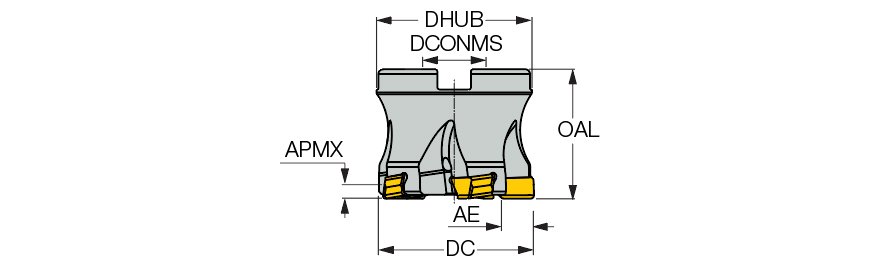

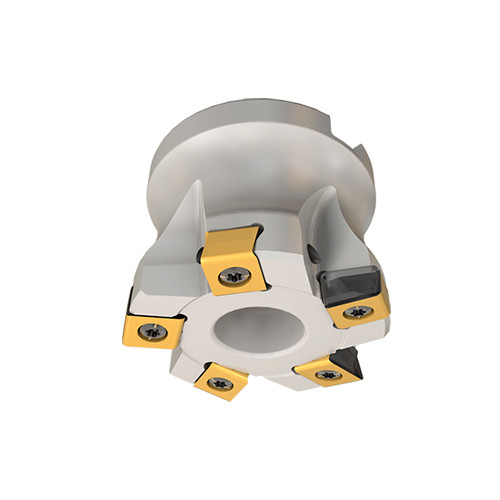

HTP D1.50-4-.50-R-LN10
| Application | | Facing | Shouldering | Side Plunging | | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Diameter (DC) | 1-1/2″ | Cutting Direction (HAND) | Right Hand |
| Cutting Item Count (CICT) | 4 | Measurement Type | Inch |
| Depth of Cut Maximum (APMX) | 0.118″ | Tool Type | Plungers cutters |
| Connection Diameter Machine Side (DCONMS) | 1/2″ | Body Material | Steel |
| Face Effective Cutting Edge Count (ZEFF) | 4 | Tool Cutting Edge Angle (KAPR) | 2 Degrees |
| Overall Length (OAL) | 1.57″ | Body Diameter (BD) | 1.42″ |
| Connection Thread Size | M10 |
Product Features

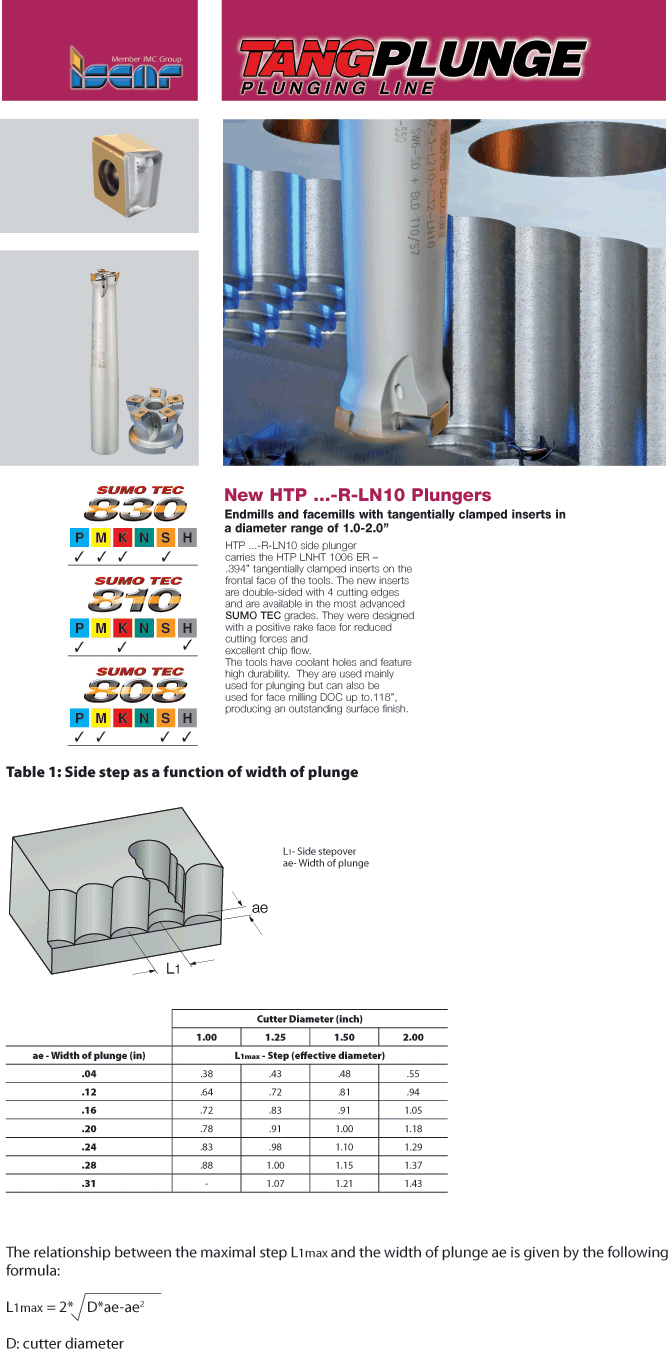

| Family Description | TANGPLUNGE, Shell mill plungers carrying tangentially clamped inserts with 4 cutting edges. .315″ side plunging capacity and .118″ maximum face milling DOC. Provide excellent side wall surface finish and a flat bottom. | Country of Origin | Israel |
| Remarks | .315 side plunging capacity and .118 maximum face milling DOC For adaptation, click on More Info |
Shipping Info
Package Weight
1.124
