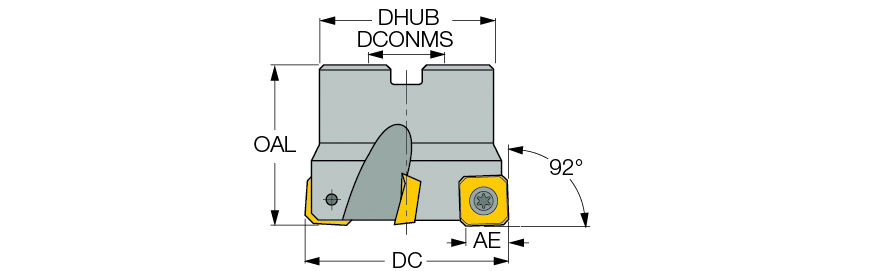

F92ST D2.00-05-.75-12-C
| Application | | Side Plunging | | Coolant Supply Property (CSP) | External |
| Cutting Diameter (DC) | 2″ | Cutting Direction (HAND) | Right Hand |
| Cutting Item Count (CICT) | 5 | Measurement Type | Inch |
| Depth of Cut Maximum (APMX) | 0.252″ | Tool Type | Plungers cutters |
| Connection Diameter Machine Side (DCONMS) | 3/4″ | Body Material | Steel |
| Face Effective Cutting Edge Count (ZEFF) | 5 | Tool Cutting Edge Angle (KAPR) | 2 Degrees |
| Overall Length (OAL) | 1.575″ | Body Diameter (BD) | 1.772″ |
| Connection Thread Size | M10 |
Product Features

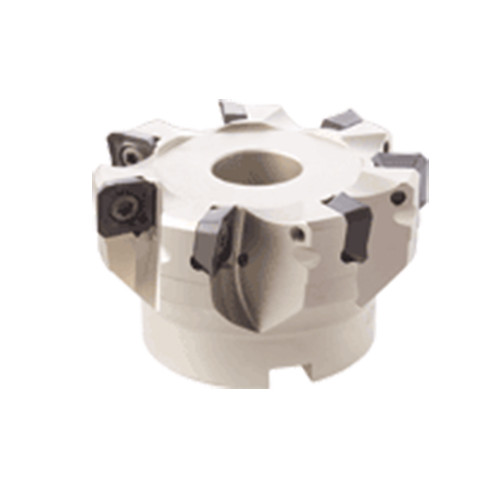

| Family Description | 92° side plunge milling cutters, used with SEKT 43 AFR.. inserts. | Country of Origin | Israel |
| Remarks | For adaptation, click on More Info. |
Shipping Info
Package Weight
0.873
