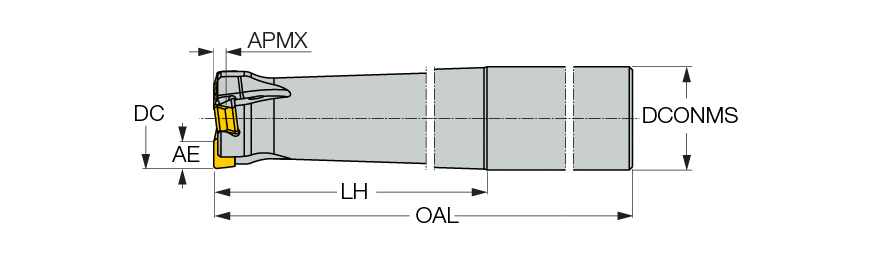

HTP D1.50-4-L10-W1.25LN10
| Application | | Shouldering | Side Plunging | | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Diameter (DC) | 1-1/2″ | Head Length (LH) | 2″ |
| Cutting Item Count (CICT) | 4 | Cutting Direction (HAND) | Right Hand |
| Depth of Cut Maximum (APMX) | 0.118″ | Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 1-1/4″ | Tool Type | Plungers cutters |
| Face Effective Cutting Edge Count (ZEFF) | 4 | Body Material | Steel |
| Overall Length (OAL) | 10″ | Tool Cutting Edge Angle (KAPR) | 2 Degrees |
| Connection Thread Size | M10 | Connection Code Machine Side (CCMS) | Weldon |
| Shank Type | Weldon |
Product Features

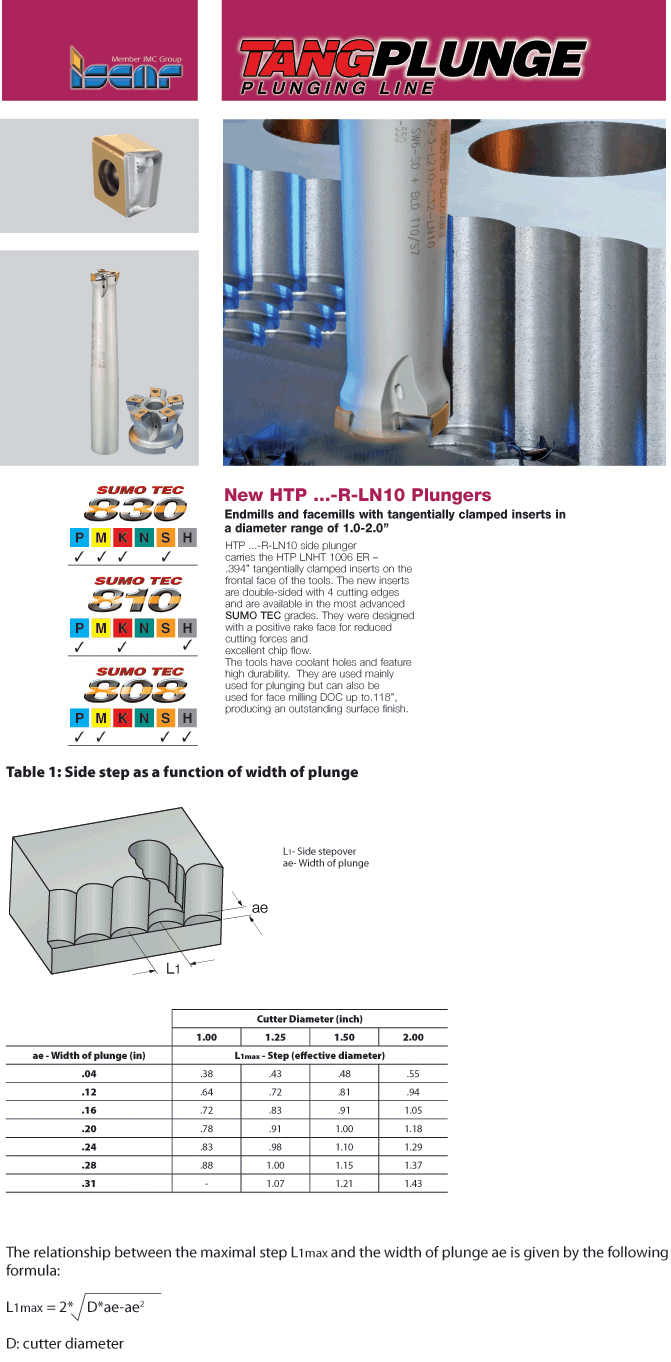

| Family Description | TANGPLUNGE, Side plungers carrying tangentially clamped inserts with 4 cutting edges. .315″ side plunging capacity and .118″ maximum face milling DOC. Provide excellent side wall surface finish and a flat bottom. 1 | Country of Origin | Israel |
| Remarks | .315 side plunging capacity and .118 maximum face milling DOC For adaptation, click on More Info |
Shipping Info
Package Weight
3.551
