HTP D1.0-4-L5.0-W1.0-LN06

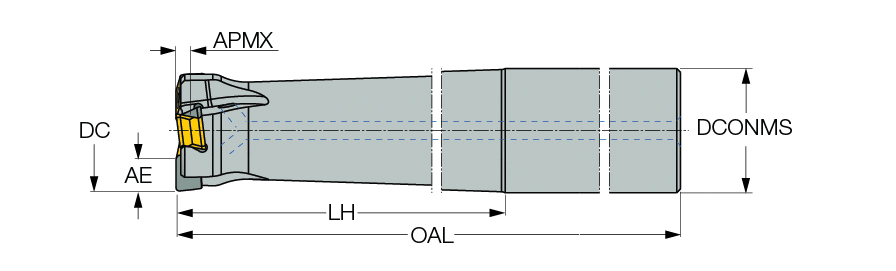

| Application | | Shouldering | Side Plunging | | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Diameter (DC) | 1″ | Head Length (LH) | 2″ |
| Cutting Item Count (CICT) | 4 | Cutting Direction (HAND) | Right Hand |
| Depth of Cut Maximum (APMX) | 0.098″ | Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 1″ | Tool Type | Plungers cutters |
| Face Effective Cutting Edge Count (ZEFF) | 4 | Body Material | Steel |
| Overall Length (OAL) | 5″ | Tool Cutting Edge Angle (KAPR) | 2 Degrees |
| Connection Thread Size | M10 | Connection Code Machine Side (CCMS) | Cylindrical |
| Shank Type | Weldon |
Product Features

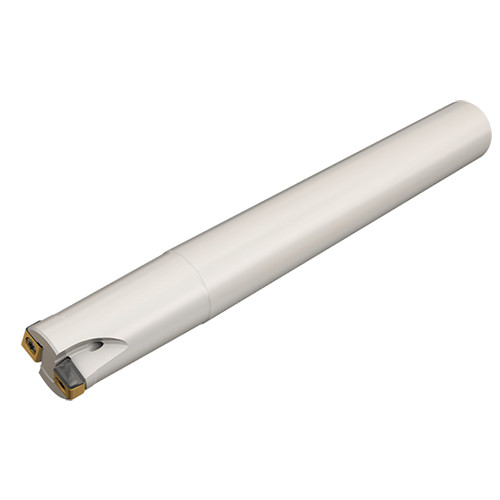

| Family Description | TANGPLUNGE, Side plungers carrying tangentially clamped inserts with 4 cutting edges. .197″ side plunging capacity and .100″ maximum face milling DOC. Provide excellent side wall surface finish and a flat bottom. | Country of Origin | Israel |
| Remarks | .197 side plunging capacity and .098 maximum face milling DOC For adaptation, click on More Info |
Shipping Info
Package Weight
2.204
