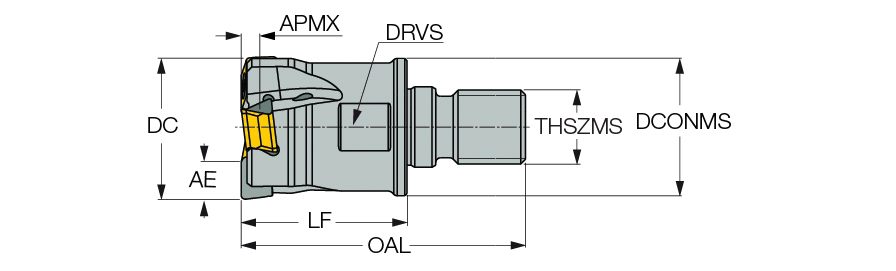

HTP D20-3-M10-LN06
| Application | | Shouldering | Side Plunging | | Cutting Direction (HAND) | Right Hand |
| Cutting Diameter (DC) | 0.787″ | Measurement Type | Inch |
| Cutting Item Count (CICT) | 3 | Tool Type | Plungers cutters |
| Depth of Cut Maximum (APMX) | 0.098″ | Functional Length (LF) | 1.181″ |
| Connection Diameter Machine Side (DCONMS) | 0.709″ | Body Material | Steel |
| Face Effective Cutting Edge Count (ZEFF) | 3 | Tool Cutting Edge Angle (KAPR) | 2 Degrees |
| Overall Length (OAL) | 1.968″ | Body Diameter (BD) | 0.709″ |
| Connection Thread Size | M10 | Connection Code Machine Side (CCMS) | FLEXFIT |
| Coolant Supply Property (CSP) | Coolant Thru |
Product Features

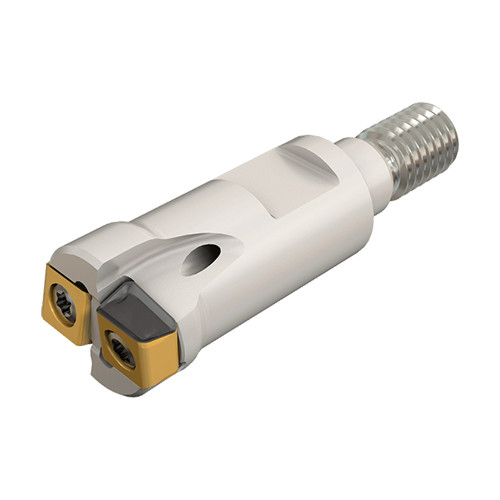

| Family Description | TANGPLUNGE, Side plungers with FLEXFIT connection carrying tangentially clamped inserts with 4 cutting edges. .197″ sideplunging capacity and .100″ maximum face milling DOC. Provide excellent side wall surface finish and a flat bottom | Country of Origin | Israel |
| Remarks | For adaptation, click on More Info. Before mounting the FLEX-FIT adaptation, clean the mating surfaces and threads. Tighten to eliminate gaps, using the torque value from TQ_3 |
Shipping Info
Package Weight
0.254
