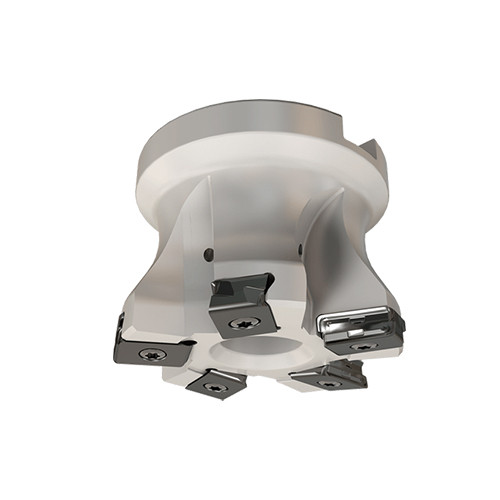

HTP D080-06-32-R-LN16

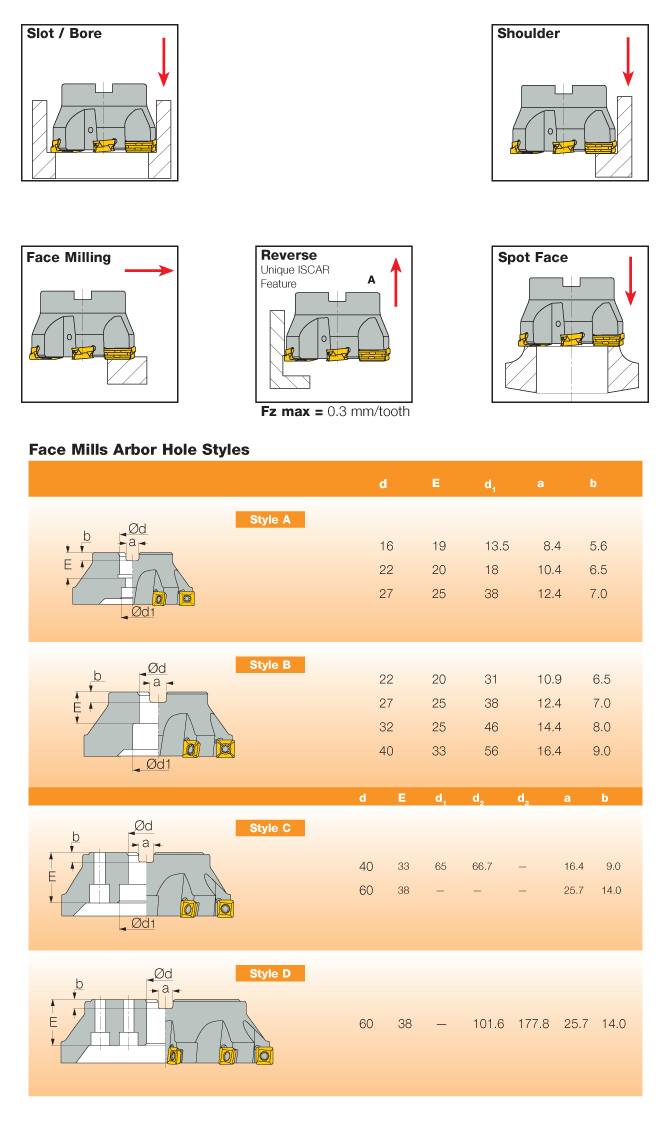

| Application | | Facing | Shouldering | Side Plunging | | Coolant Supply Property (CSP) | Coolant Thru |

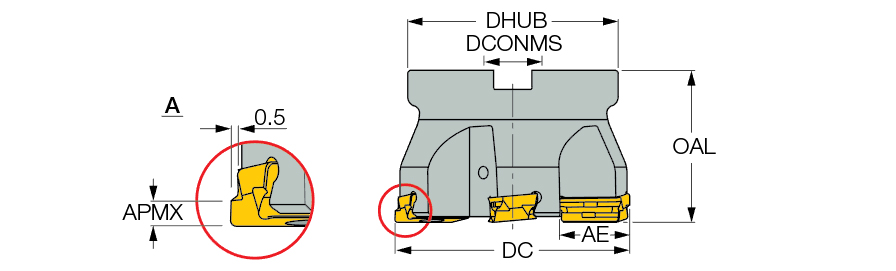

| Cutting Diameter (DC) | 80 mm | Cutting Direction (HAND) | Right Hand |
| Cutting Item Count (CICT) | 6 | Measurement Type | Metric |
| Depth of Cut Maximum (APMX) | 3 mm | Tool Type | Plungers cutters |
| Connection Diameter Machine Side (DCONMS) | 32 mm | Body Material | Steel |
| Face Effective Cutting Edge Count (ZEFF) | 6 | Tool Cutting Edge Angle (KAPR) | 2 Degrees |
| Overall Length (OAL) | 50 mm | Body Diameter (BD) | 72 mm |
| Connection Thread Size | M10 |
Product Features
| Family Description | TANGPLUNGE, Shell mill plungers carrying tangentially clamped inserts with 4 cutting edges. 14 mm side plunging capacity and 3 mm maximum face milling DOC. Provide excellent side wall surface finish and a flat bottom. | Country of Origin | Israel |
| Remarks | A-Used for rear cutting-see More Info |
Shipping Info
Package Weight
2.416
