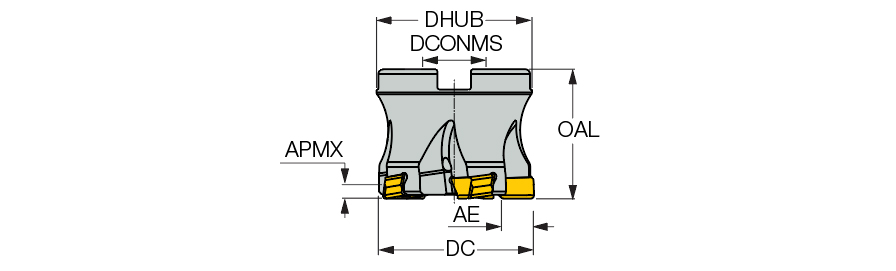

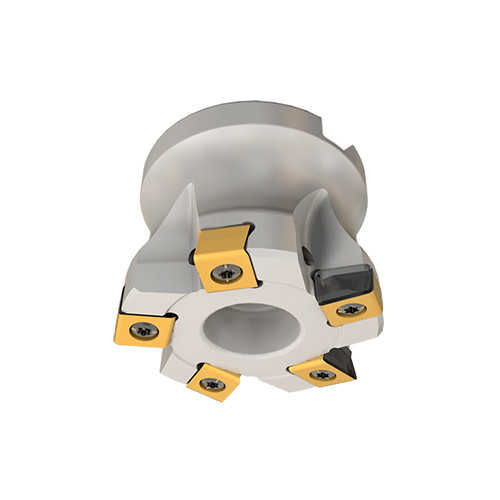

HTP D052-5-22-R-LN10
| Application | | Facing | Shouldering | Side Plunging | | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Diameter (DC) | 52 mm | Cutting Direction (HAND) | Right Hand |
| Cutting Item Count (CICT) | 5 | Measurement Type | Metric |
| Depth of Cut Maximum (APMX) | 3 mm | Tool Type | Plungers cutters |
| Connection Diameter Machine Side (DCONMS) | 22 mm | Body Material | Steel |
| Face Effective Cutting Edge Count (ZEFF) | 5 | Tool Cutting Edge Angle (KAPR) | 2 Degrees |
| Overall Length (OAL) | 40 mm | Body Diameter (BD) | 48 mm |
| Connection Thread Size | M10 |
Product Features

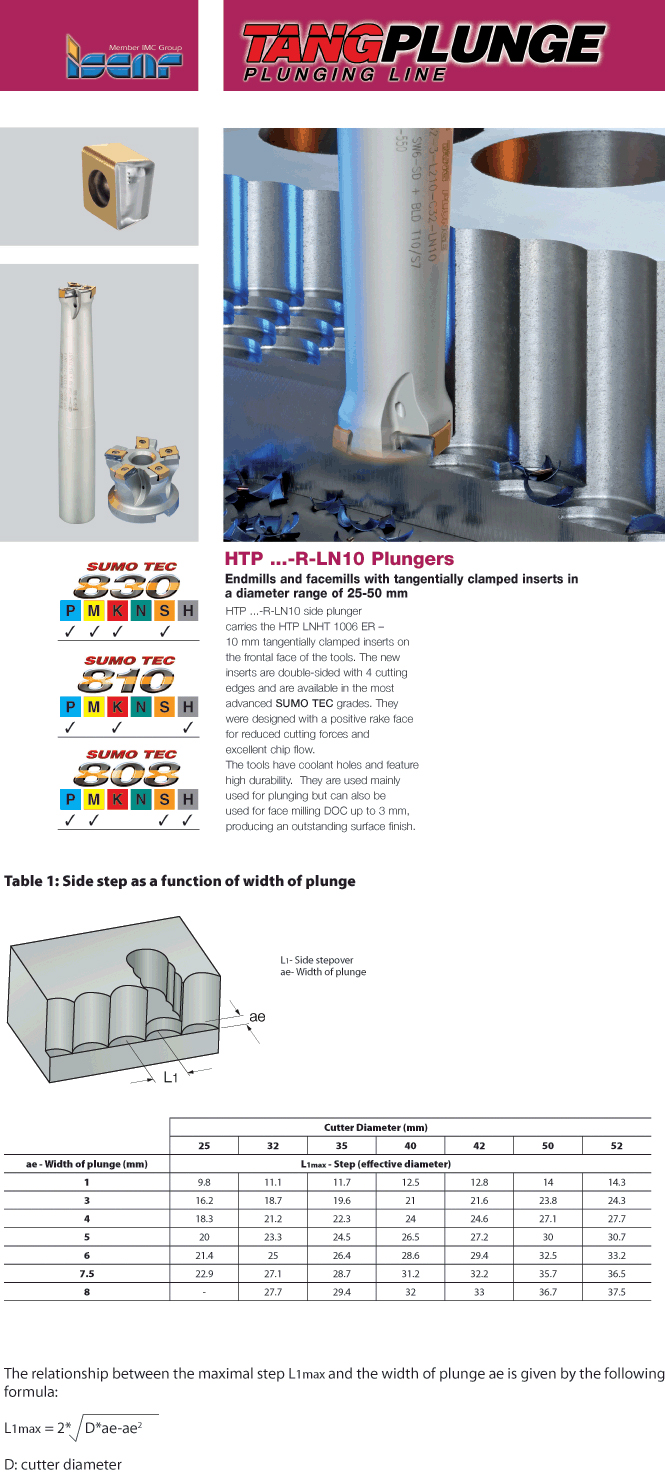

| Family Description | TANGPLUNGE, Shell mill plungers carrying tangentially clamped inserts with 4 cutting edges. 8 mm side plunging capacity and 3 mm maximum face milling DOC. Provide excellent side wall surface finish and a flat bottom. | Country of Origin | Israel |
| Remarks | For adaptation, click on More Info |
Shipping Info
Package Weight
1.129
