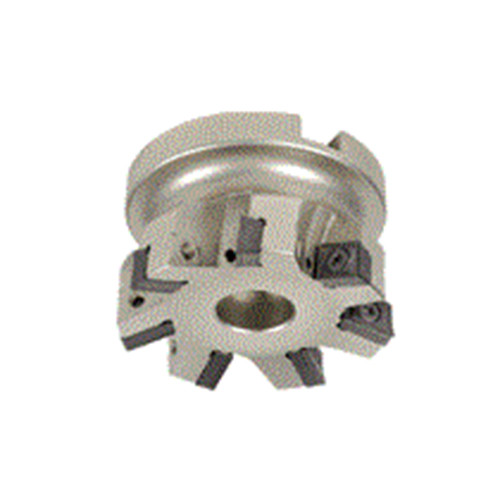

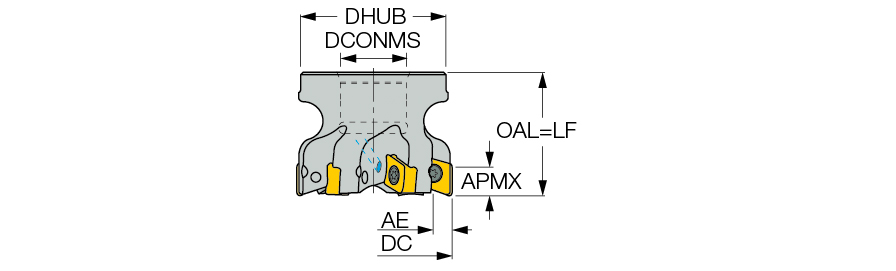

PLX D52-22-12
| Application | | Facing | Rampdown | Side Plunging | | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Diameter (DC) | 52 mm | Cutting Direction (HAND) | Right Hand |
| Cutting Item Count (CICT) | 6 | Measurement Type | Metric |
| Depth of Cut Maximum (APMX) | 9 mm | Tool Type | Plungers cutters |
| Connection Diameter Machine Side (DCONMS) | 22 mm | Body Material | Steel |
| Face Effective Cutting Edge Count (ZEFF) | 6 | Tool Cutting Edge Angle (KAPR) | 2 Degrees |
| Overall Length (OAL) | 40 mm | Body Diameter (BD) | 50 mm |
| Connection Thread Size | M10 |
Product Features
| Family Description | Side shell mill plungers carrying XCMT 120408TR inserts. | Country of Origin | Israel |
| Remarks | With holes for internal coolant |
Shipping Info
Package Weight
0.996
