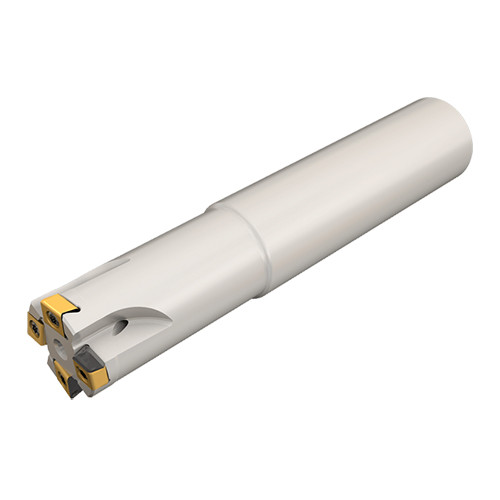

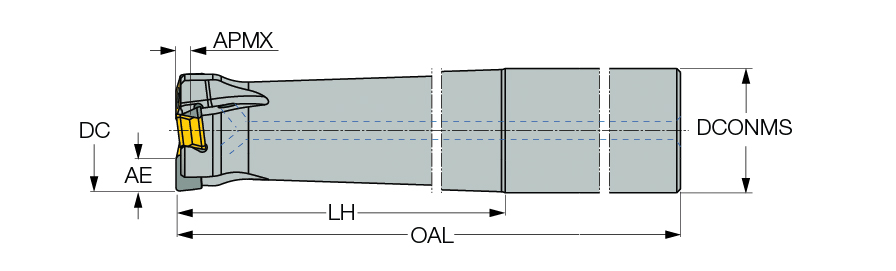

HTP D025-3-L150-C25-LN06
| Application | | Shouldering | Side Plunging | | Shank Type | Round |
| Cutting Diameter (DC) | 25 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Item Count (CICT) | 3 | Head Length (LH) | 50 mm |
| Depth of Cut Maximum (APMX) | 2.5 mm | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 25 mm | Measurement Type | Metric |
| Face Effective Cutting Edge Count (ZEFF) | 3 | Tool Type | Plungers cutters |
| Usable Length (LU) | 50 mm | Body Material | Steel |
| Overall Length (OAL) | 150 mm | Tool Cutting Edge Angle (KAPR) | 2 Degrees |
| Connection Thread Size | M10 | Connection Code Machine Side (CCMS) | Cylindrical |
Product Features
| Family Description | TANGPLUNGE, Side plungers carrying tangentially clamped inserts with 4 cutting edges. 5 mm side plunging capacity and 2.5 mm maximum face milling DOC. Provide excellent side wall surface finish and a flat bottom. | Country of Origin | Israel |
| Remarks | For adaptation, click on More Info |
Shipping Info
Package Weight
1.296
