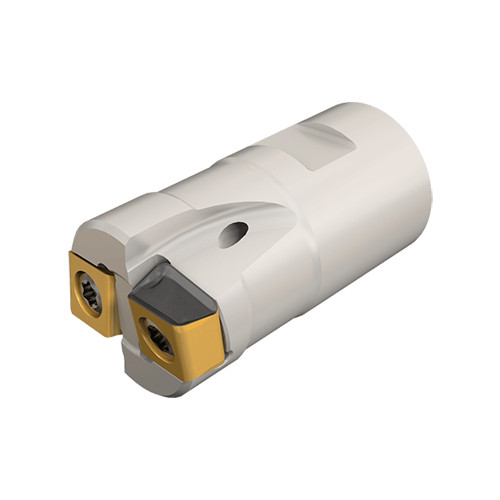

TS HTP D17/.67-2-T10-LN06

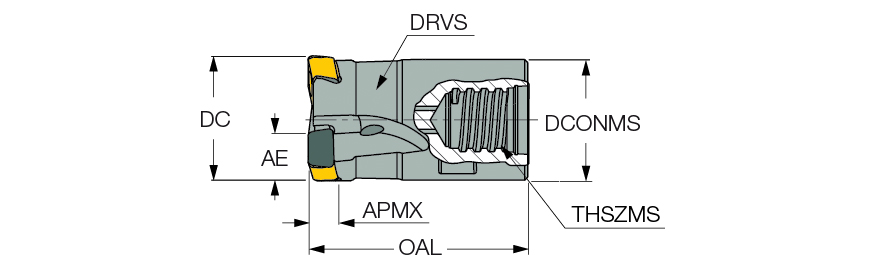

| Application | | Facing | Shouldering | Side Plunging | | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Diameter (DC) | 17 mm | Cutting Direction (HAND) | Right Hand |
| Cutting Item Count (CICT) | 2 | Measurement Type | Metric |
| Depth of Cut Maximum (APMX) | 2.5 mm | Tool Type | Plungers cutters |
| Connection Diameter Machine Side (DCONMS) | 15.2 mm | Functional Length (LF) | 30 mm |
| Face Effective Cutting Edge Count (ZEFF) | 2 | Body Material | Steel |
| Overall Length (OAL) | 30 mm | Tool Cutting Edge Angle (KAPR) | 2 Degrees |
| Connection Thread Size | T10 |
Product Features
| Family Description | TANGPLUNGE side plungers with SHANK-MASTER threaded connection carrying tangentially clamped inserts with 4 cutting edges. | Country of Origin | Israel |
Shipping Info
Package Weight
0.190
