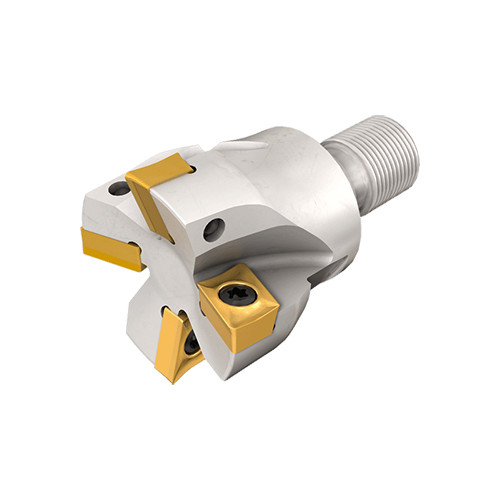

PLX D40-M16-12
| Application | | Facing | Rampdown | Side Plunging | | Cutting Direction (HAND) | Right Hand |

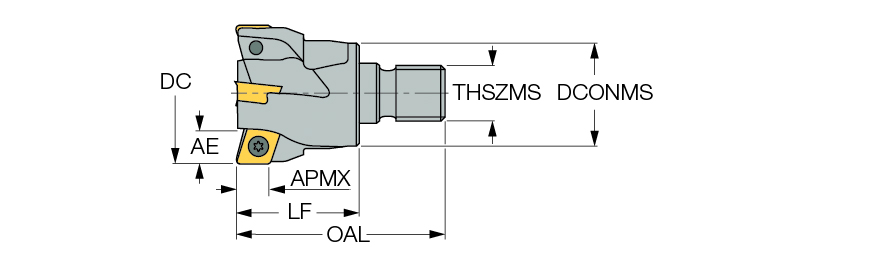

| Cutting Diameter (DC) | 40 mm | Measurement Type | Metric |
| Cutting Item Count (CICT) | 4 | Tool Type | Plungers cutters |
| Depth of Cut Maximum (APMX) | 9 mm | Functional Length (LF) | 35 mm |
| Connection Diameter Machine Side (DCONMS) | 29 mm | Body Material | Steel |
| Face Effective Cutting Edge Count (ZEFF) | 4 | Tool Cutting Edge Angle (KAPR) | 2 Degrees |
| Overall Length (OAL) | 60 mm | Body Diameter (BD) | 29 mm |
| Connection Thread Size | M16 | Connection Code Machine Side (CCMS) | FLEXFIT |
| Coolant Supply Property (CSP) | External |
Product Features
| Family Description | Side plungers with FLEXFIT threaded adaptation carrying XCMT 120408TR inserts. | Country of Origin | Israel |
| Remarks | Before mounting the FLEX-FIT adaptation, clean the mating surfaces and threads. Tighten to eliminate gaps, using the torque value from TQ_3. No internal coolant For adaptation, click on More Info |
Shipping Info
Package Weight
0.639
