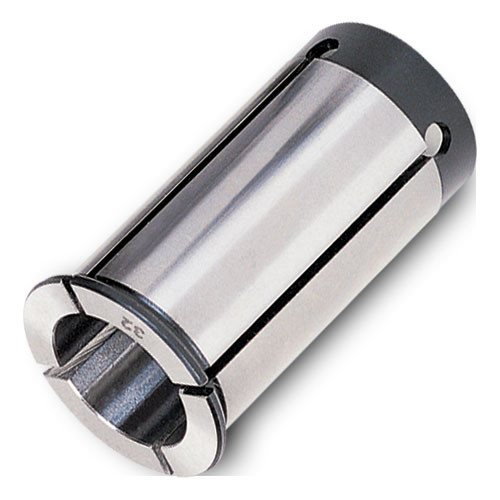

SC32SEAL15
Milling Chuck Sleeve ; 15 mm Hole Dia. ; 32 mm Shank Dia. ; 72 mm OAL ; 38 mm Body Dia.
| Connection Diameter Machine Side (DCONMS) | 32 mm | Head Length (LH) | 4 mm |
| Connection Diameter Workpiece Side (DCONWS) | 15 mm | Tool Type | Sleeves (SC, TSL) |
| Body Diameter (BD) | 38 mm | Measurement Type | Metric |
| Overall Length (OAL) | 72 mm | Body Material | Steel |
Product Features
| Family Description | *Chucking forces will be reduced by 25% when optional reduction sleeves are used | Country of Origin | Israel |
Shipping Info
Package Weight
0.000
