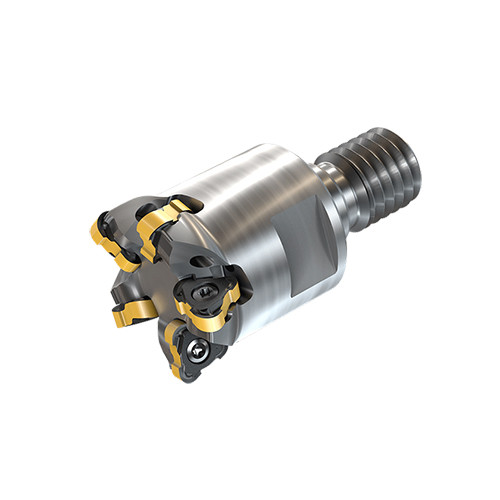

TR6 ER D25/0.98-3-M12-10

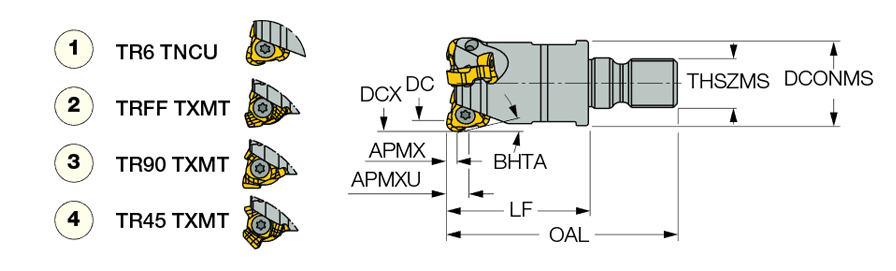

| Cutting Diameter (DC/DCX) | 0.984″ | Connection Thread Nominal Size Machine Side (THSZMS) | M12 |
| Cutting Diameter (DC) | 0.787″ | Drive Size (DRVS) | 0.748″ |
| Cutting Item Count (CICT) | 3 | Body Half Taper Angle (BHTA) | 17 Degrees |
| Depth of Cut Maximum (APMX) | 0.0984″ | Coolant Supply Property (CSP) | Coolant Thru |
| Overall Length (OAL) | 1.85″ | Cutting Direction (HAND) | Right Hand |
| Application | | Facing | Fast Feed Milling | Profiling | Shouldering | Slanted Shoulder & Chamfer | | Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 0.827″ | Body Material | Steel |
| Master Insert Identification (MIID) | TR6 TNCU 100425 | Connection Code Machine Side (CCMS) | FLEXFIT |
| Weight of Item (WT) | 0.13 lbs | Cutting Diameter Maximum (DCX) | 0.984″ |
| Functional Length (LF) | 0.983″ |
Product Features
| Family Description | Multifunction endmills with FLEXFIT threaded adaptation that carry four different insert geometries. | Country of Origin | Israel |
| Remarks | Before mounting the FLEX-FIT adaptation, clean the mating surfaces and threads. Tighten to eliminate gaps, using the torque value from TQ_3. Note: The dimensions refer to master inserts, for other insert radii and geometries, click on More Info For adaptation, click on More Info |
Shipping Info
Package Weight
0.269
