HM390 ETPD.62-4-MMT10-05

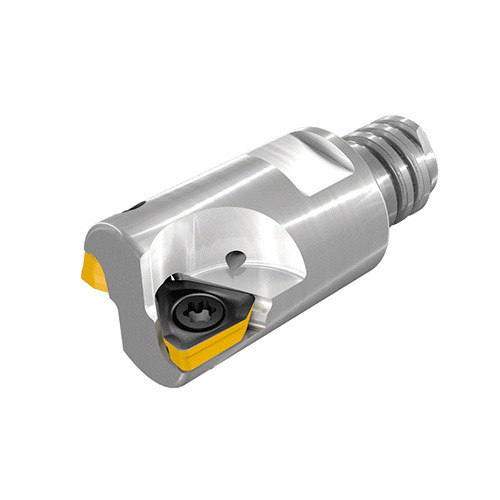

Indexable End Mill; 5/8″ Dia. × 0.138″ LOC × 0.61″ Shank Dia. × 1.2″ OAL ; 4 FL ; 90 Degrees

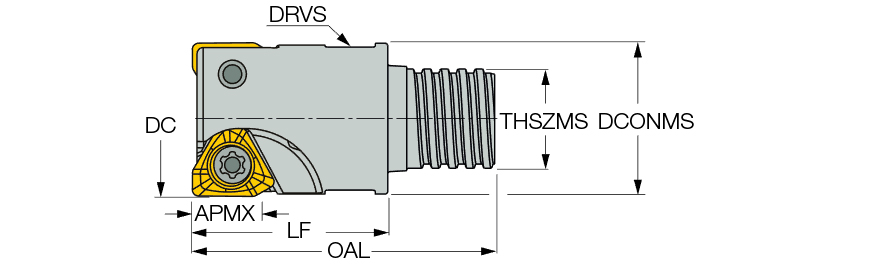

| Cutting Diameter (DC/DCX) | 5/8″ | Functional Length (LF) | 0.74″ |
| Cutting Diameter (DC) | 5/8″ | Connection Thread Nominal Size Machine Side (THSZMS) | T10 |
| Cutting Item Count (CICT) | 4 | Drive Size (DRVS) | 0.512″ |
| Depth of Cut Maximum (APMX) | 0.138″ | Flute Count (NOF) | 4 |
| Overall Length (OAL) | 1.2″ | Coolant Supply Property (CSP) | Coolant Thru |
| Ramping Angle Maximum (RMPX) | 1.5 Degrees | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Application | | Facing | Helical Interpolation | Rampdown | Shouldering | Slotting | | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 0.61″ | Measurement Type | Inch |
| Master Insert Identification (MIID) | HM390 TPKT 0502PDR | Body Material | Steel |
| Weight of Item (WT) | 0.01 lbs |
Product Features
| Family Description | 90° endmills with a MULTI-MASTER threaded adaptation carrying HM390 TPKT 0502... triangular inserts with helical cutting edges. | Country of Origin | Israel |
| Remarks | Insert tightening torque 4.42 lbf*in For adaptation, click on More Info |
