HM390 ETPD.50-3-C.50-05C

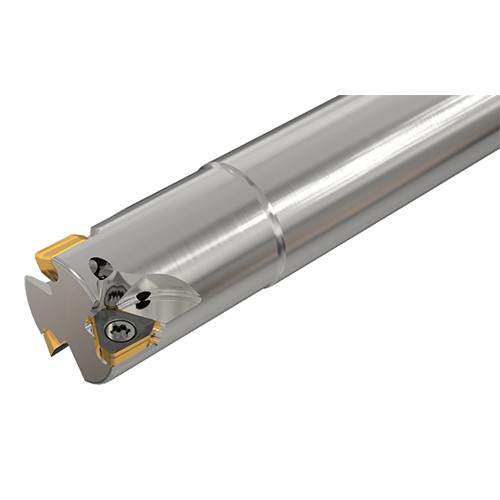

Indexable End Mill; 1/2″ Dia. × 0.138″ LOC × 1/2″ Shank Dia. × 3-1/2″ OAL ; 3 FL ; Round Shank ; 90 Degrees

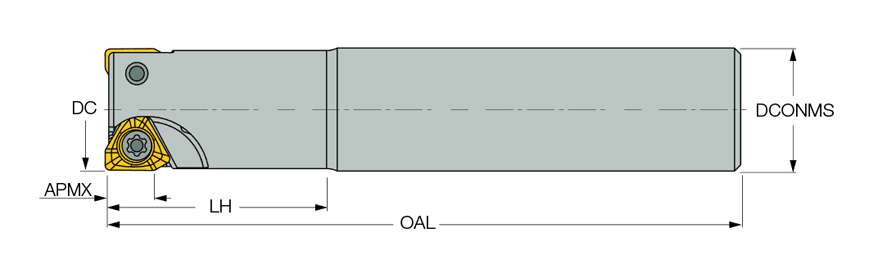

| Cutting Diameter (DC/DCX) | 1/2″ | Weight of Item (WT) | 0.17 lbs |
| Cutting Diameter (DC) | 1/2″ | Head Length (LH) | 3/4″ |
| Cutting Item Count (CICT) | 3 | Functional Length (LF) | 3-1/2″ |
| Depth of Cut Maximum (APMX) | 0.138″ | Flute Count (NOF) | 3 |
| Overall Length (OAL) | 3-1/2″ | Coolant Supply Property (CSP) | Coolant Thru |
| Shank Type | Round | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Ramping Angle Maximum (RMPX) | 1.5 Degrees | Measurement Type | Inch |
| Application | | Facing | Helical Interpolation | Rampdown | Shouldering | Slotting | | Body Material | Steel |
| Connection Diameter Machine Side (DCONMS) | 1/2″ | Connection Code Machine Side (CCMS) | Cylindrical |
| Master Insert Identification (MIID) | HM390 TPKT 0502PDR | Cutting Diameter Maximum (DCX) | 1/2″ |
Product Features
| Family Description | 90° endmills carrying HM390 TPKT 0502triangular inserts with 3 helical cutting edges. | Country of Origin | Israel |
| Remarks | Tightening torque 4.42 lbf*in |
Shipping Info
Package Weight
1.5
