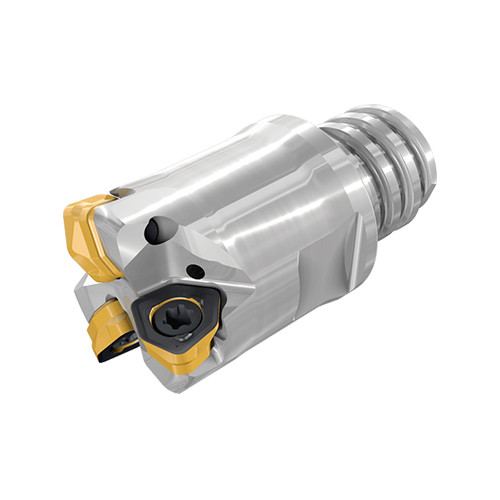

FFT3 EFMD12/.47-3MMT08-03
Indexable End Mill; 0.472″ Dia. × 0.0236″ LOC × 0.461″ Shank Dia. × 0.886″ OAL ; 17 Degrees

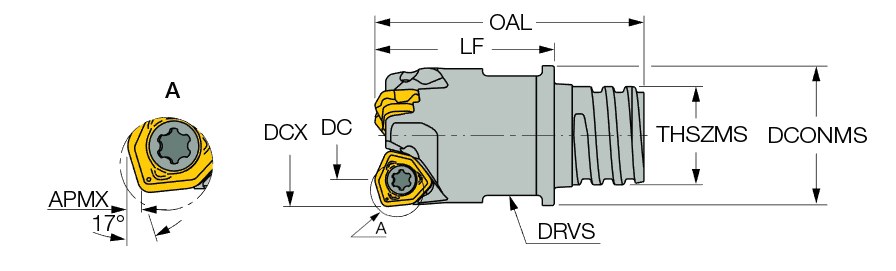

| Cutting Diameter (DC/DCX) | 0.472″ | Connection Thread Nominal Size Machine Side (THSZMS) | T08 |
| Cutting Diameter (DC) | 0.299″ | Drive Size (DRVS) | 0.394″ |
| Cutting Item Count (CICT) | 3 | Torque (TQ) | 4.43 lbfxin |
| Depth of Cut Maximum (APMX) | 0.0236″ | Coolant Supply Property (CSP) | Coolant Thru |
| Overall Length (OAL) | 0.886″ | Tool Cutting Edge Angle (KAPR) | 17 Degrees |
| Ramping Angle Maximum (RMPX) | 4.7 Degrees | Cutting Direction (HAND) | Right Hand |
| Application | | Facing | Fast Feed Milling | Helical Interpolation | Plunging & Recessing | Profiling | Rampdown | Side Plunging | | Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 0.461″ | Body Material | Steel |
| Master Insert Identification (MIID) | FFT3 WXMT 030206T | Connection Code Machine Side (CCMS) | MultiMaster |
| Weight of Item (WT) | 0.07 lbs | Cutting Diameter Maximum (DCX) | 0.472″ |
| Functional Length (LF) | 0.591″ |
Product Features
| Family Description | Endmills with a MULTI-MASTER threaded adaptation carrying single-sided small trigon inserts for fast feed milling | Country of Origin | Israel |
| Remarks | Radius for programming .04 To generate a straight surface without cusps, the width of cut must not exceed DC |
Shipping Info
Additional Fees and Notes
0
Package Weight
0.112
