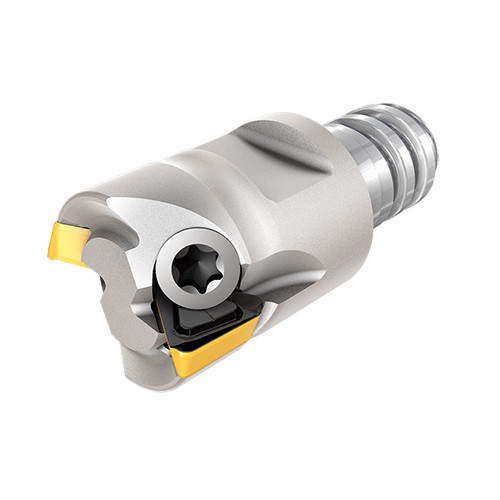

HM390 ETP D.31-2-MMT05-04
Indexable End Mill; 0.313″ Dia. × 0.12″ LOC × 0.3″ Shank Dia. × 0.85″ OAL ; 2 FL ; 90 Degrees

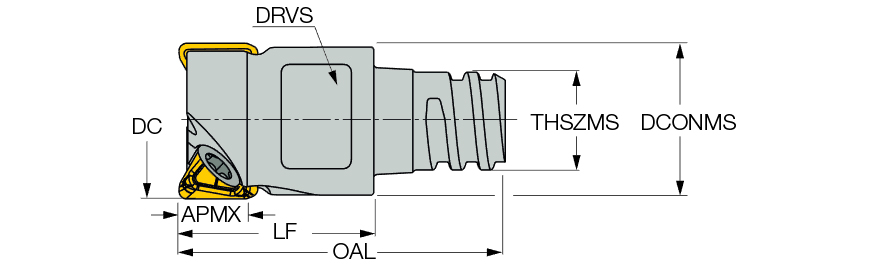

| Cutting Diameter (DC/DCX) | 0.313″ | Functional Length (LF) | 0.38″ |
| Cutting Diameter (DC) | 0.313″ | Connection Thread Nominal Size Machine Side (THSZMS) | T05 |
| Cutting Item Count (CICT) | 2 | Drive Size (DRVS) | 0.217″ |
| Depth of Cut Maximum (APMX) | 0.12″ | Flute Count (NOF) | 2 |
| Overall Length (OAL) | 0.85″ | Coolant Supply Property (CSP) | External |
| Ramping Angle Maximum (RMPX) | 3 Degrees | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Application | | Facing | Rampdown | Shouldering | Slotting | | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 0.3″ | Measurement Type | Inch |
| Master Insert Identification (MIID) | HM390 TPKR 0401 | Body Material | Steel |
| Weight of Item (WT) | 0.01 lbs |
Product Features
| Family Description | 90° endmills with a MULTI-MASTER threaded adaptation carrying HM390 TPKR 0401... triangular inserts with helical cutting edges | Country of Origin | Israel |
| Remarks | Tightening torque 4.4 Lbf x in |
Shipping Info
Package Weight
1.5
