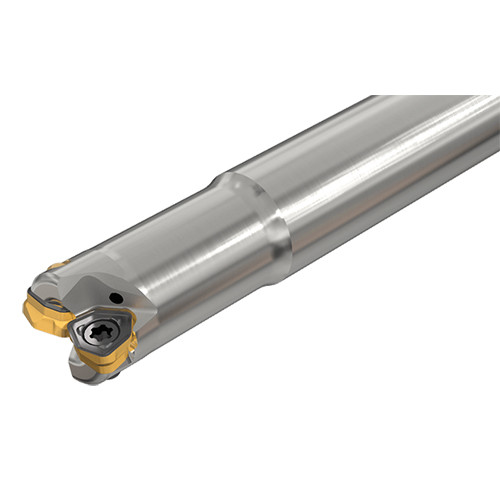

FFT3 EFMD.38-2-3.0C.38-03

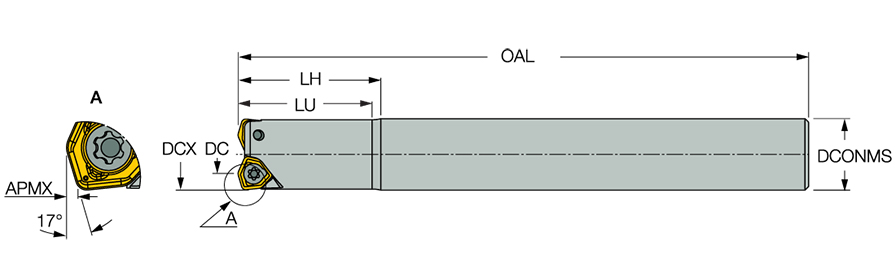

Indexable End Mill; 3/8″ Dia. × 0.0236″ LOC × 3/8″ Shank Dia. × 3″ OAL × 0.672″ LU ; Round Shank ; 17 Degrees
| Cutting Diameter (DC/DCX) | 3/8″ | Head Length (LH) | 3/4″ |
| Cutting Diameter (DC) | 0.2″ | Functional Length (LF) | 4″ |
| Cutting Item Count (CICT) | 2 | Usable Length (LU) | 0.672″ |
| Depth of Cut Maximum (APMX) | 0.0236″ | Torque (TQ) | 4.5 lbfxin |
| Overall Length (OAL) | 3″ | Coolant Supply Property (CSP) | Coolant Thru |
| Shank Type | Round | Tool Cutting Edge Angle (KAPR) | 17 Degrees |
| Ramping Angle Maximum (RMPX) | 7.5 Degrees | Measurement Type | Inch |
| Application | | Facing | Fast Feed Milling | Helical Interpolation | Plunging & Recessing | Profiling | Rampdown | Side Plunging | | Body Material | Steel |
| Connection Diameter Machine Side (DCONMS) | 3/8″ | Connection Code Machine Side (CCMS) | Cylindrical |
| Master Insert Identification (MIID) | FFT3 WXMT 030206T | Cutting Diameter Maximum (DCX) | 3/8″ |
| Weight of Item (WT) | 0.08 Lbs |
Product Features
| Family Description | Endmills carrying single-sided small trigon inserts for fast feed milling | Country of Origin | Israel |

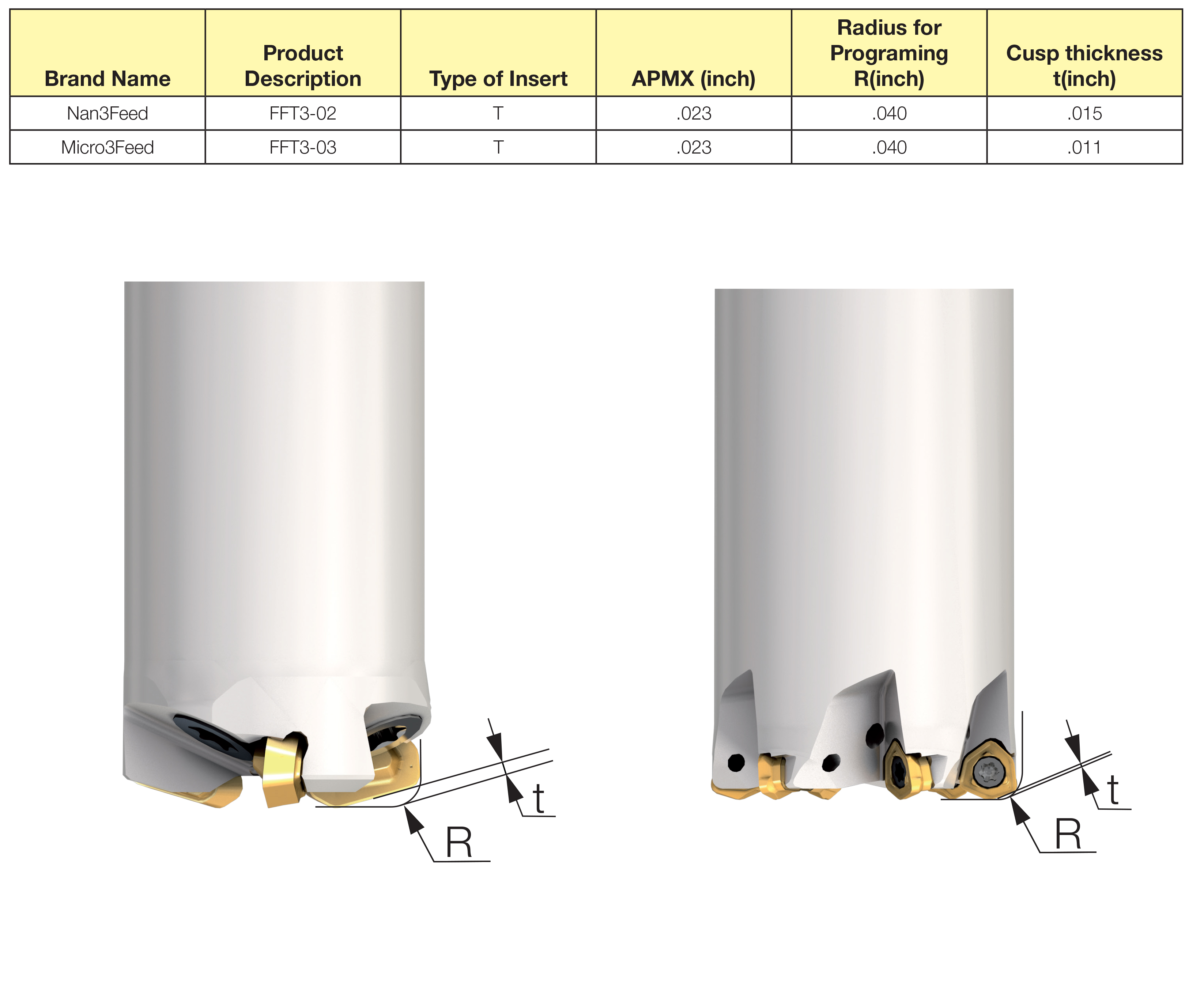

| Remarks | Radius for programming .04 To generate a straight surface without cusps, the width of cut must not exceed DC |
Shipping Info
Package Weight
0.170
