SC 1 1/4 S HYDRO 5/16

Name: SC 1 1/4 S HYDRO 5/16
Brand: HYDROFIT
SKU: EH4559645
Price: 224.60 USD
Availability: InStock

‎Milling Chuck Sleeve ; 0.313″ Hole Dia. ; 1-1/4″ Shank Dia. ; 2.598″ OAL

Item # EH4559645

Brand: Iscar

MFG #: 4559645

Alternate MFG #: 04559645

Legacy Part #: EH4559645

UPC #: 00385468 | 04559645 | 7291075294460

TradeName: HYDROFIT SYSTEM

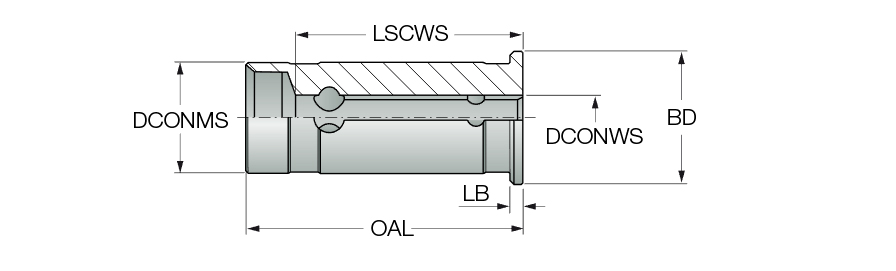

Connection Diameter Machine Side (DCONMS)

‎1-1/4″

Measurement Type

Inch

Connection Diameter Workpiece Side (DCONWS)

0.313″

Body Material

Steel

Overall Length (OAL)

2.598″

Body Length (LB)

0.098″

Tool Type

Accessories and Devices

Product Features

Family Description

Sealed reduction sleeves for hydraulic chucks.

Country of Origin

Germany

Remarks

Any cylindrical, Weldon shanks only .25-.75 may be clamped to the sleeves

Package Weight

0.692
