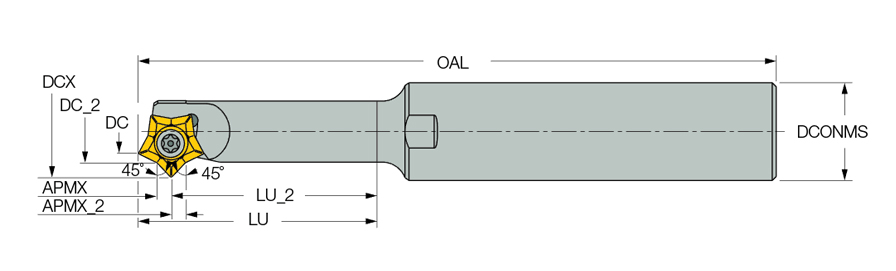

| Cutting Diameter (DC/DCX) | 0.458″ | Weight of Item (WT) | 0.17 lbs |
| Cutting Diameter (DC) | 0.26″ | Usable Length (LU) | 1.157″ |
| Cutting Item Count (CICT) | 1 | Coolant Supply Property (CSP) | External |
| Depth of Cut Maximum (APMX) | 0.059″ | Tool Cutting Edge Angle (KAPR) | 45 Degrees |
| Overall Length (OAL) | 4″ | Cutting Direction (HAND) | Right Hand |
| Shank Type | Round | Measurement Type | Inch |
| Application | | Chamfering & Bottom Deburring | Countersinking | Slanted Shoulder & Chamfer | | Body Material | Steel |
| Connection Diameter Machine Side (DCONMS) | 1/2″ | Cutting Diameter Maximum (DCX) | 0.458″ |
| Master Insert Identification (MIID) | PNMT 0602 |
Product Features

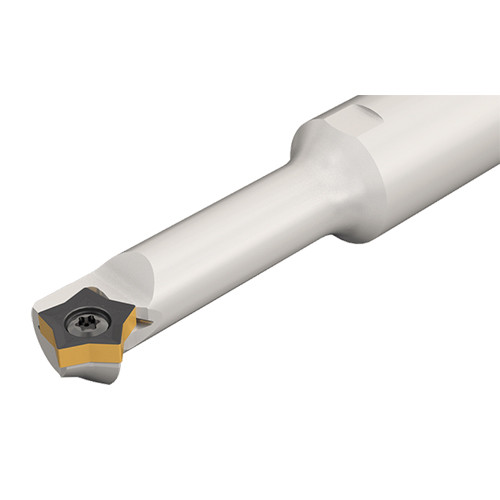

| Family Description | Upper and bottom chamfering endmills carrying pentagonal inserts with 5 front and 5 back cutting edges. | Country of Origin | Israel |
Shipping Info
Package Weight
0.282
