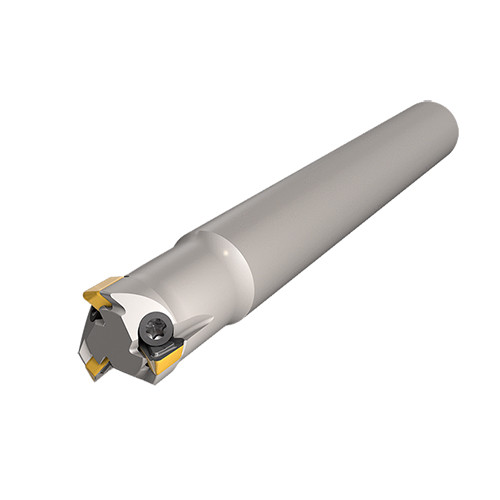

HM390 ETP D.38-3-C.38-04

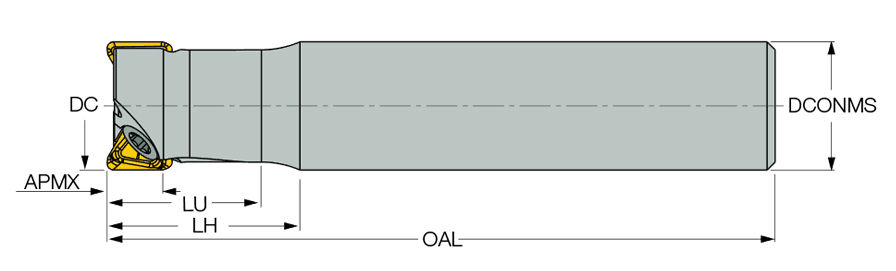

Indexable End Mill; 3/8″ Dia. × 0.12″ LOC × 3/8″ Shank Dia. × 3″ OAL × 0.4685″ LU ; Round Shank
| Cutting Diameter (DC/DCX) | 3/8″ | Weight of Item (WT) | 0.09 lbs |
| Cutting Diameter (DC) | 3/8″ | Head Length (LH) | 0.56″ |
| Cutting Item Count (CICT) | 3 | Functional Length (LF) | 3″ |
| Depth of Cut Maximum (APMX) | 0.12″ | Usable Length (LU) | 0.4685″ |
| Overall Length (OAL) | 3″ | Coolant Supply Property (CSP) | External |
| Shank Type | Round | Measurement Type | Inch |
| Ramping Angle Maximum (RMPX) | 2.6 Degrees | Body Material | Steel |
| Application | | Facing | Rampdown | Shouldering | Slotting | | Connection Code Machine Side (CCMS) | Cylindrical |
| Connection Diameter Machine Side (DCONMS) | 3/8″ |
Product Features
| Family Description | 90° small diameter endmills carrying HM390 TPKR 0401 triangular inserts with 3 helical cutting edges | Country of Origin | Israel |
| Remarks | Tightening torque 4.4 Lbf x in |
Shipping Info
Package Weight
1.5
