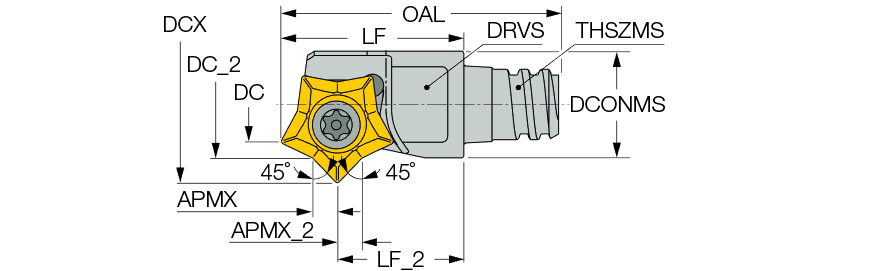

| Cutting Diameter (DC/DCX) | 0.736″ | Drive Size (DRVS) | 0.512″ |
| Cutting Diameter (DC) | 0.528″ | Flute Count (NOF) | 3 |
| Cutting Item Count (CICT) | 3 | Torque (TQ) | 250 lbfxin |
| Depth of Cut Maximum (APMX) | 0.059″ | Coolant Supply Property (CSP) | Coolant Thru |
| Overall Length (OAL) | 1.232″ | Tool Cutting Edge Angle (KAPR) | 45 Degrees |
| Application | | Chamfering & Bottom Deburring | Countersinking | Slanted Shoulder & Chamfer | | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 0.602″ | Measurement Type | Inch |
| Master Insert Identification (MIID) | PNMT 0602 | Body Material | Steel |
| Weight of Item (WT) | 0.05 lbs | Connection Code Machine Side (CCMS) | MultiMaster |
| Functional Length (LF) | 0.787″ | Cutting Diameter Maximum (DCX) | 0.736″ |
| Connection Thread Nominal Size Machine Side (THSZMS) | T10 |
Product Features

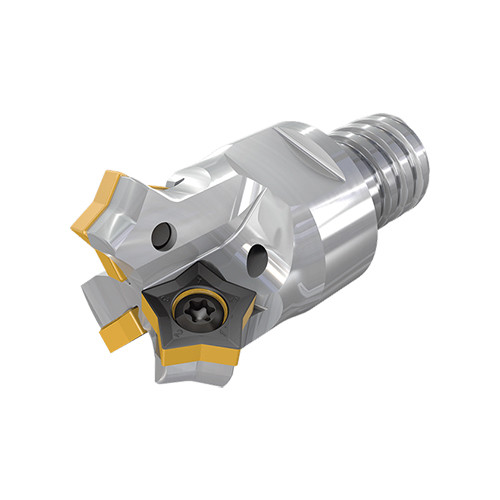

| Family Description | Upper and bottom chamfering endmills with a MULTI-MASTER thrded adaptation carrying pentagonal inserts with 5 front and 5 back cutting edges. | Country of Origin | Israel |
| Remarks | Do not apply lubricant to the MULTI-MASTER threaded connection For adaptation options, click on More Info . |
Shipping Info
Package Weight
0.170
