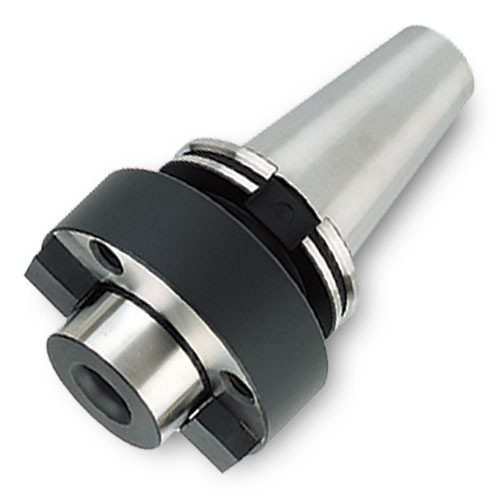

CAT50FM2-1/2X2.875
| Connection Diameter Workpiece Side (DCONWS) | 2-1/2″ | Clamping Length Workpiece Side (LSCWS) | 1-1/8″ |
| Shank Size (SS) | CAT50 | Material | Steel |
| Functional Length (LF) | 2-7/8″ | Shell Mill Pilot Size | 1-1/2″ |
| Body Diameter (BD) | 4.881″ | Flange Diameter (DF) | 3.380″ |
| Shank Type | CAT | Measurement Type | Inch |
| Overhang Length (L2) | 6″ | Body Material | Steel |
| Hex Size | 5/8″ | Protruding Length (LPR) | 6″ |
Product Features
| Family Description | Note: 4″ and 6″ Gage Lengths are standard with both the 4 Bolt Circle Pattern and Lock Screw adaptions, 2.875″ Gage Length has 4 Bolt Circle adaption only *Peripheral clamping screws are not supplied with holder; | Country of Origin | Italy |
Shipping Info
Package Weight
16.665
