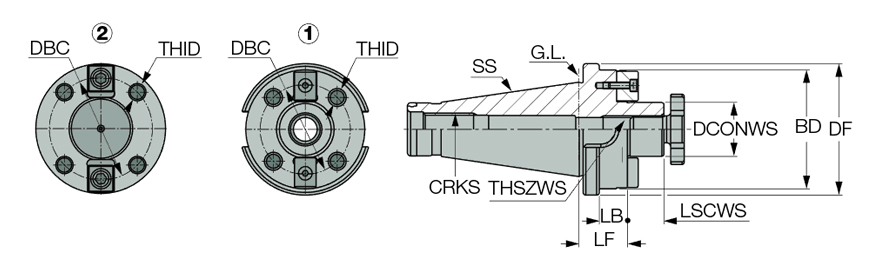

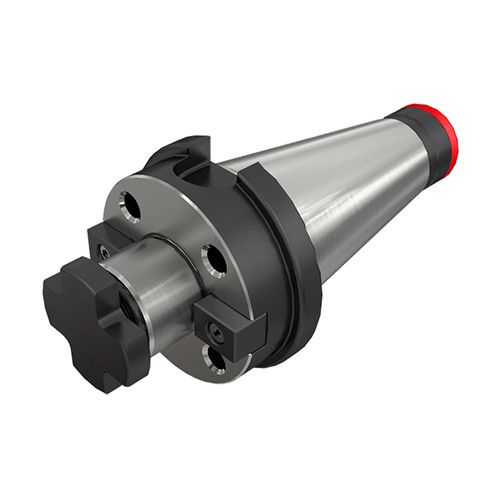

DIN2080 50 FM 40
| Connection Diameter Workpiece Side (DCONWS) | 40 mm | Clamping Length Workpiece Side (LSCWS) | 27 mm |
| Shank Size (SS) | 50 | Material | Steel |
| Functional Length (LF) | 36 mm | Shell Mill Pilot Size | 1-1/2″ |
| Body Length (LB) | 36 mm | Flange Diameter (DF) | 3.380″ |
| Body Diameter (BD) | 66.7 mm | Tool Type | DIN 2080 |
| Shank Standard | DIN2080 | Measurement Type | Metric |
| Shank Type | CAT | Body Material | Steel |
| Overhang Length (L2) | 6″ | Protruding Length (LPR) | 6″ |
| Hex Size | 5/8″ |
Product Features
| Family Description | DIN6357 face mill holders with DIN2080 A tapered shanks | Country of Origin | Italy |
| Remarks | Peripheral clamping screws are not supplied. |
Shipping Info
Package Weight
8.655
