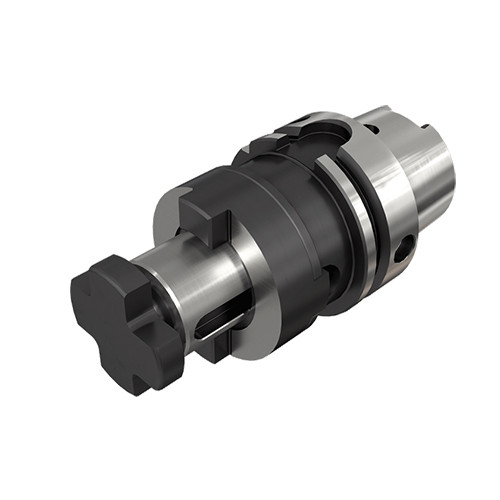

HSK A100 SEMC27X60
Shell Mill Holder; 100 mm Shank Dia. ; 27 mm Hole Dia. ; 48 mm Body Dia. ; 60 mm Body Length ; 100 Shank Size ; CAT Shank

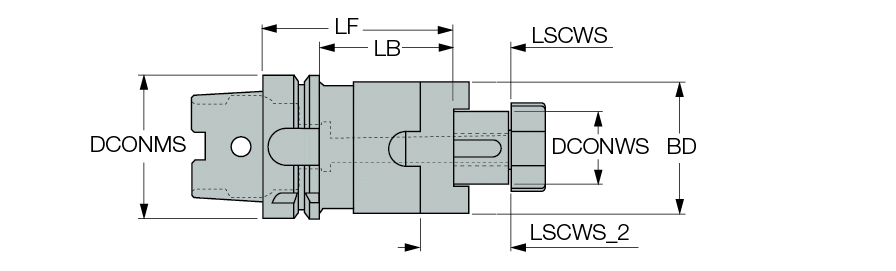

| Connection Diameter Machine Side (DCONMS) | 100 mm | Clamping Length Workpiece Side (LSCWS) | 21 mm |
| Connection Diameter Workpiece Side (DCONWS) | 27 mm | Material | Steel |
| Shank Size (SS) | 100 | Shell Mill Pilot Size | 1-1/2″ |
| Functional Length (LF) | 60 mm | Flange Diameter (DF) | 3.380″ |
| Body Length (LB) | 60 mm | Tool Type | HSK |
| Body Diameter (BD) | 48 mm | Measurement Type | Metric |
| Shank Standard | HSK A | Body Material | Steel |
| Shank Type | CAT | Protruding Length (LPR) | 6″ |
| Overhang Length (L2) | 6″ | Connection Code Machine Side (CCMS) | HSK |
| Hex Size | 5/8″ |
Product Features
| Family Description | DIN 6358 COMBI shell mill holders with HSK DIN 69893 form A tapered shanks. | Country of Origin | Italy |
| Remarks | A cooling tube must be used with all coolant through HSK spindles (to be ordered separately). When mounting slitting cutters, remove the driving ring and use spacer rings. Verify that the weight of the entire tool assembly does not exceed the machine spindle's carrying capability. For shank dimensions, Click on More Info |
Shipping Info
Package Weight
5.869
