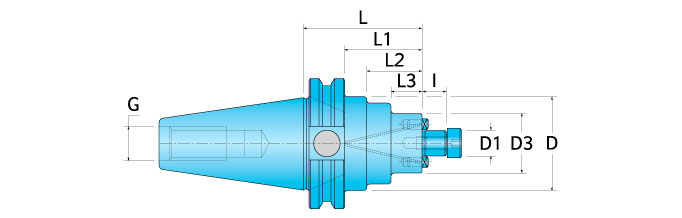

CAT50SEM1/2X5.500C
| Connection Diameter Machine Side (DCONMS) | #50 | Hex Size | 5/8″ |
| Connection Diameter Workpiece Side (DCONWS) | 1/2″ | Material | Steel |
| Shank Size (SS) | CAT50 | Shell Mill Pilot Size | 1-1/2″ |
| Functional Length (LF) | 5-1/2″ | Flange Diameter (DF) | 3.380″ |
| Shank Type | CAT | Measurement Type | Inch |
| Overhang Length (L2) | 6″ | Protruding Length (LPR) | 6″ |
Product Features
| Family Description | ADB Style Coolant (coolant through the center or the flange) with coolant holes at the base of the pilot CAT40 balanced G2.5@20,000RPM CAT50 balanced G2.5@15,000RPM | Country of Origin | Israel |
Shipping Info
Package Weight
11.27
