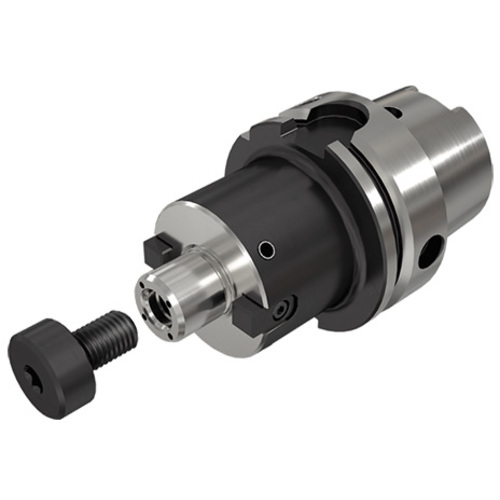

HSK A100 SEM1 1/4X2.36C
Shell Mill Holder; 3.937″ Shank Dia. ; 1-1/4″ Hole Dia. ; 2.752″ Body Dia. ; 2.36″ Body Length ; 100 Shank Size ; CAT Shank

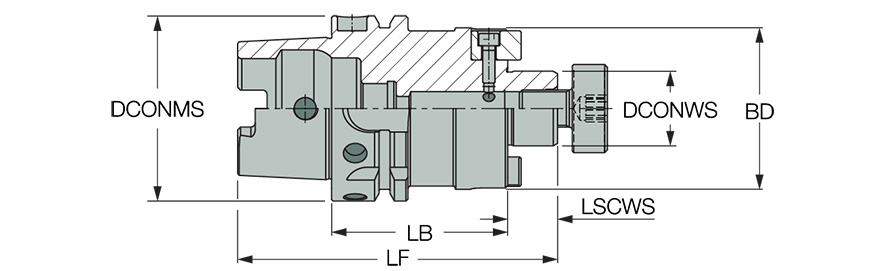

| Connection Diameter Machine Side (DCONMS) | 3.937″ | Hex Size | 5/8″ |
| Connection Diameter Workpiece Side (DCONWS) | 1-1/4″ | Clamping Length Workpiece Side (LSCWS) | 0.67″ |
| Shank Size (SS) | 100 | Material | Steel |
| Functional Length (LF) | 2.36″ | Shell Mill Pilot Size | 1-1/2″ |
| Body Length (LB) | 2.36″ | Flange Diameter (DF) | 3.380″ |
| Body Diameter (BD) | 2.752″ | Measurement Type | Inch |
| Shank Type | CAT | Body Material | Steel |
| Overhang Length (L2) | 6″ | Protruding Length (LPR) | 6″ |

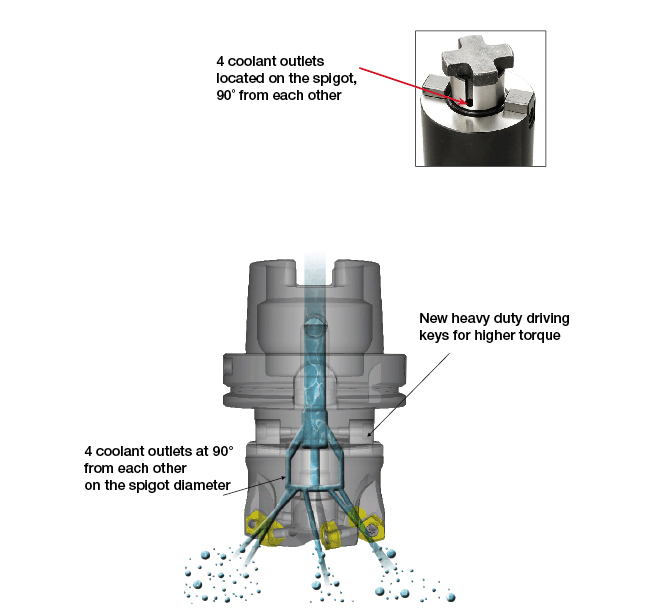

| Coolant Supply Property (CSP) | Coolant Thru |
Product Features
| Family Description | Shell mill holders with coolant holes and DIN69893 form A HSK tapered shanks. Symmetrical design, dynamically balanced for high RPM machining. | Country of Origin | Italy |
Shipping Info
Package Weight
7.086
