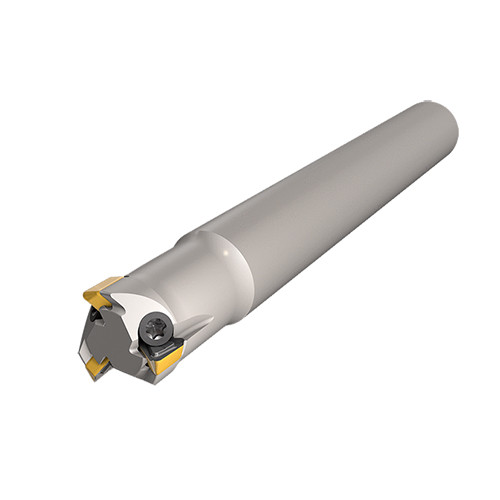

HM390 ETP D10-3-C10-04
Indexable End Mill; 10 mm Dia. × 3 mm LOC × 10 mm Shank Dia. × 80 mm OAL × 12.6 mm LU ; Round Shank

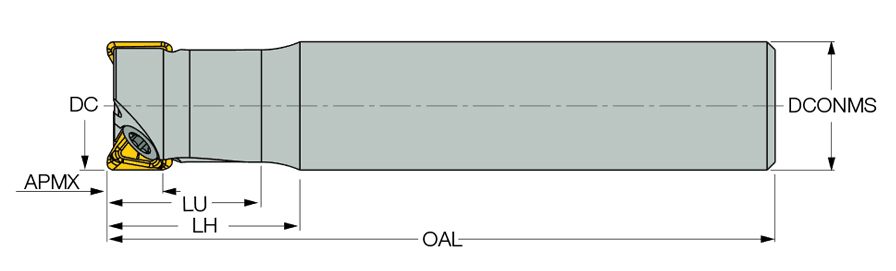

| Cutting Diameter (DC/DCX) | 10 mm | Weight of Item (WT) | 0.05 kg |
| Cutting Diameter (DC) | 10 mm | Head Length (LH) | 15 mm |
| Cutting Item Count (CICT) | 3 | Functional Length (LF) | 80 mm |
| Depth of Cut Maximum (APMX) | 3 mm | Usable Length (LU) | 12.6 mm |
| Overall Length (OAL) | 80 mm | Coolant Supply Property (CSP) | External |
| Shank Type | Round | Cutting Direction (HAND) | Right Hand |
| Ramping Angle Maximum (RMPX) | 2.5 Degrees | Measurement Type | Metric |
| Application | | Facing | Rampdown | Shouldering | Slotting | | Body Material | Steel |
| Connection Diameter Machine Side (DCONMS) | 10 mm | Connection Code Machine Side (CCMS) | Cylindrical |
Product Features
| Family Description | 90° small diameter endmills carrying HM390 TPKR 0401 triangular inserts with 3 helical cutting edges. | Country of Origin | Israel |
| Remarks | Tightening torque 0.5 Nxm |
Shipping Info
Package Weight
0.079
