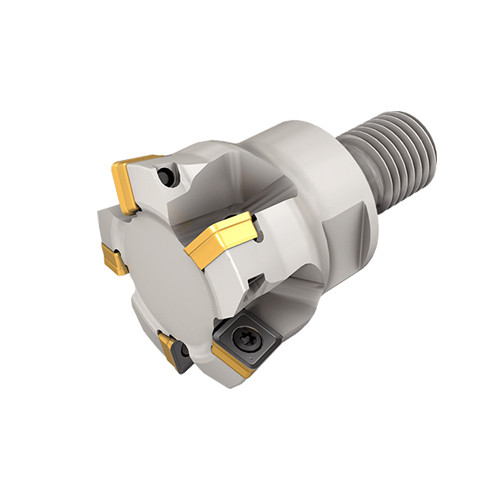

FFQ4 D032-04-M16-09
Indexable End Mill; 32 mm Dia. × 1.2 mm LOC × 29 mm Shank Dia. × 60 mm OAL ; 12 Degrees

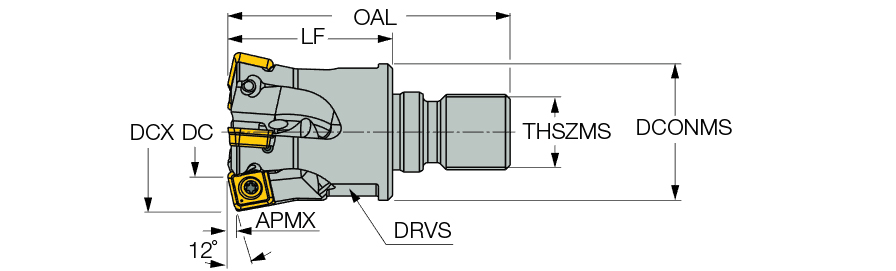

| Cutting Diameter (DC/DCX) | 32 mm | Connection Thread Nominal Size Machine Side (THSZMS) | M16 |
| Cutting Diameter (DC) | 17.7 mm | Drive Size (DRVS) | 25 mm |
| Cutting Item Count (CICT) | 4 | Torque (TQ) | 2 Nxm |
| Depth of Cut Maximum (APMX) | 1.2 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Overall Length (OAL) | 60 mm | Tool Cutting Edge Angle (KAPR) | 12 Degrees |
| Ramping Angle Maximum (RMPX) | 3.2 Degrees | Cutting Direction (HAND) | Right Hand |
| Application | | Facing | Fast Feed Milling | Helical Interpolation | Plunging & Recessing | Profiling | Rampdown | Side Plunging | | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 29 mm | Body Material | Steel |
| Master Insert Identification (MIID) | FFQ4 SOMT 090412T | Connection Code Machine Side (CCMS) | FLEXFIT |
| Weight of Item (WT) | 0.14 kg | Cutting Diameter Maximum (DCX) | 32 mm |
| Functional Length (LF) | 35 mm |
Product Features
| Family Description | Fast feed endmills with FLEXFIT threaded adaptation carrying single-sided square Inserts with 4 cutting edges | Country of Origin | Israel |
| Remarks | To generate a straight surface without cusps, the width of cut must not exceed DC Radius for programming: for insert SOMT 2.4mm, for insert SOMW 3.0mm When mounting insert SOMW, APMX=1.0mm For slot milling or machining with high tool overhang, the maximum depth of cut should be reduced by 50% For cutting conditions click on More info |
Shipping Info
Package Weight
0.5
Related Documentation
When mounting items with FLEXFIT threaded adaptation to their holders, the mating surfaces and threaded areas must be thoroughly cleaned. Apply appropriate tightening torque to eliminate a gap between the mating faces. Estimated torque values are specified in the TQ_3 parameter
