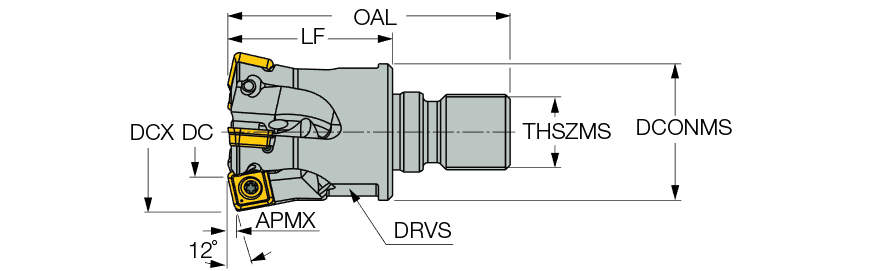

| Cutting Diameter (DC/DCX) | 1-1/2″ | Functional Length (LF) | 1.4″ |
| Cutting Diameter (DC) | 0.933″ | Connection Thread Nominal Size Machine Side (THSZMS) | M16 |
| Cutting Item Count (CICT) | 5 | Drive Size (DRVS) | 0.984″ |
| Depth of Cut Maximum (APMX) | 0.047″ | Torque (TQ) | 17.7 lbfxin |
| Overall Length (OAL) | 2.4″ | Coolant Supply Property (CSP) | Coolant Thru |
| Ramping Angle Maximum (RMPX) | 2.3 Degrees | Cutting Direction (HAND) | Right Hand |
| Application | | Facing | Fast Feed Milling | Helical Interpolation | Plunging & Recessing | Profiling | Rampdown | Side Plunging | | Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 1.142″ | Body Material | Steel |
| Master Insert Identification (MIID) | FFQ4 SOMT 090412T | Connection Code Machine Side (CCMS) | FLEXFIT |
| Weight of Item (WT) | 0.39 lbs | Cutting Diameter Maximum (DCX) | 1-1/2″ |
Product Features

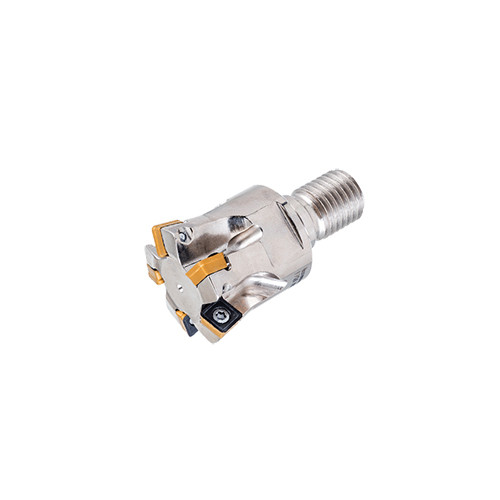

| Family Description | Fast feed endmills with FLEXFIT threaded adaptation carrying single-sided Inserts with 4 cutting edges | Country of Origin | Israel |
| Remarks | To generate a straight surface without cusps, the width of cut must not exceed DC Radius for programming: for insert SOMT .094, for insert SOMW .118 When mounting insert SOMW, APMX=.039 For slot milling or machining with high tool overhang, the maximum depth of cut should be reduced by 50% For cutting conditions click on More info |
Shipping Info
Package Weight
0.264
