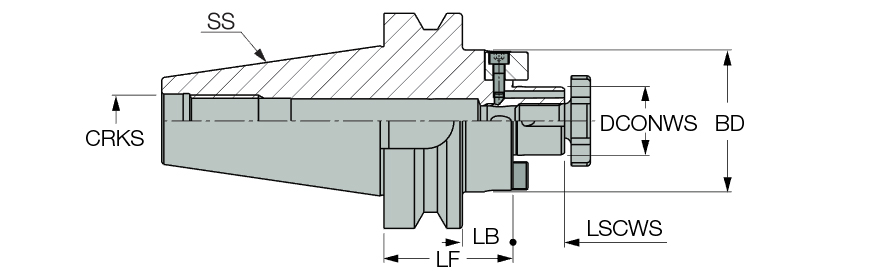

BT30 FC SEM1.0X2.000C
Shell Mill Holder; 30″ Shank Dia. ; 1″ Hole Dia. ; 2.165″ Body Dia. ; 2″ Body Length ; 30 Shank Size ; CAT Shank
| Connection Diameter Machine Side (DCONMS) | 30″ | Hex Size | 5/8″ |
| Connection Diameter Workpiece Side (DCONWS) | 1″ | Clamping Length Workpiece Side (LSCWS) | 0.67″ |
| Shank Size (SS) | 30 | Material | Steel |
| Functional Length (LF) | 2″ | Shell Mill Pilot Size | 1-1/2″ |
| Body Length (LB) | 2″ | Flange Diameter (DF) | 3.380″ |
| Body Diameter (BD) | 2.165″ | Measurement Type | Inch |
| Shank Type | CAT | Body Material | Steel |
| Overhang Length (L2) | 6″ | Protruding Length (LPR) | 6″ |
| Coolant Supply Property (CSP) | Coolant Thru | Connection Code Machine Side (CCMS) | BT |
Product Features
| Family Description | Shell EndMill Holders with Coolant Holes and BT MAS-403 Face Contact AD Tapered Shanks | Country of Origin | Italy |
Shipping Info
Package Weight
2.227
