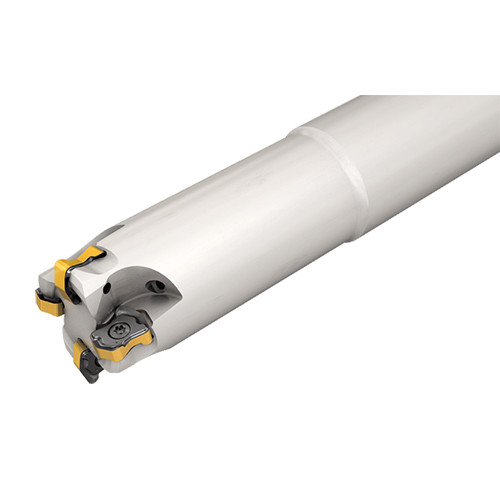

FFX4 ED32-5-080-W32-04
Indexable End Mill; 32 mm Dia. × 0.8 mm LOC × 32 mm Shank Dia. × 150 mm OAL × 77.4 mm LU ; Weldon Shank ; 17 Degrees

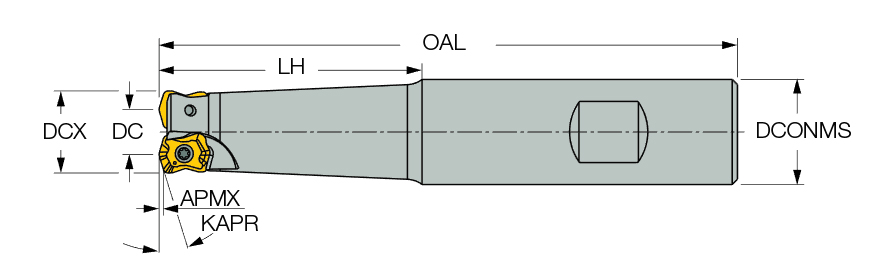

| Cutting Diameter (DC/DCX) | 32 mm | Head Length (LH) | 80 mm |
| Cutting Diameter (DC) | 24.6 mm | Functional Length (LF) | 114 mm |
| Cutting Item Count (CICT) | 5 | Usable Length (LU) | 77.4 mm |
| Depth of Cut Maximum (APMX) | 0.8 mm | Torque (TQ) | 0.9 Nxm |
| Overall Length (OAL) | 150 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Shank Type | Weldon | Tool Cutting Edge Angle (KAPR) | 17 Degrees |
| Ramping Angle Maximum (RMPX) | 1.2 Degrees | Measurement Type | Metric |
| Application | | Facing | Fast Feed Milling | Helical Interpolation | Plunging & Recessing | Profiling | Rampdown | Side Plunging | | Body Material | Steel |
| Connection Diameter Machine Side (DCONMS) | 32 mm | Connection Code Machine Side (CCMS) | Weldon |
| Master Insert Identification (MIID) | FFX4 XNMU 040310T | Cutting Diameter Maximum (DCX) | 32 mm |
| Weight of Item (WT) | 0.8 kg |
Product Features
| Family Description | Endmills carrying small double-sided "bone shaped" inserts with 4 cutting edges for fast feed milling. Used for small size pockets milling | Country of Origin | Israel |

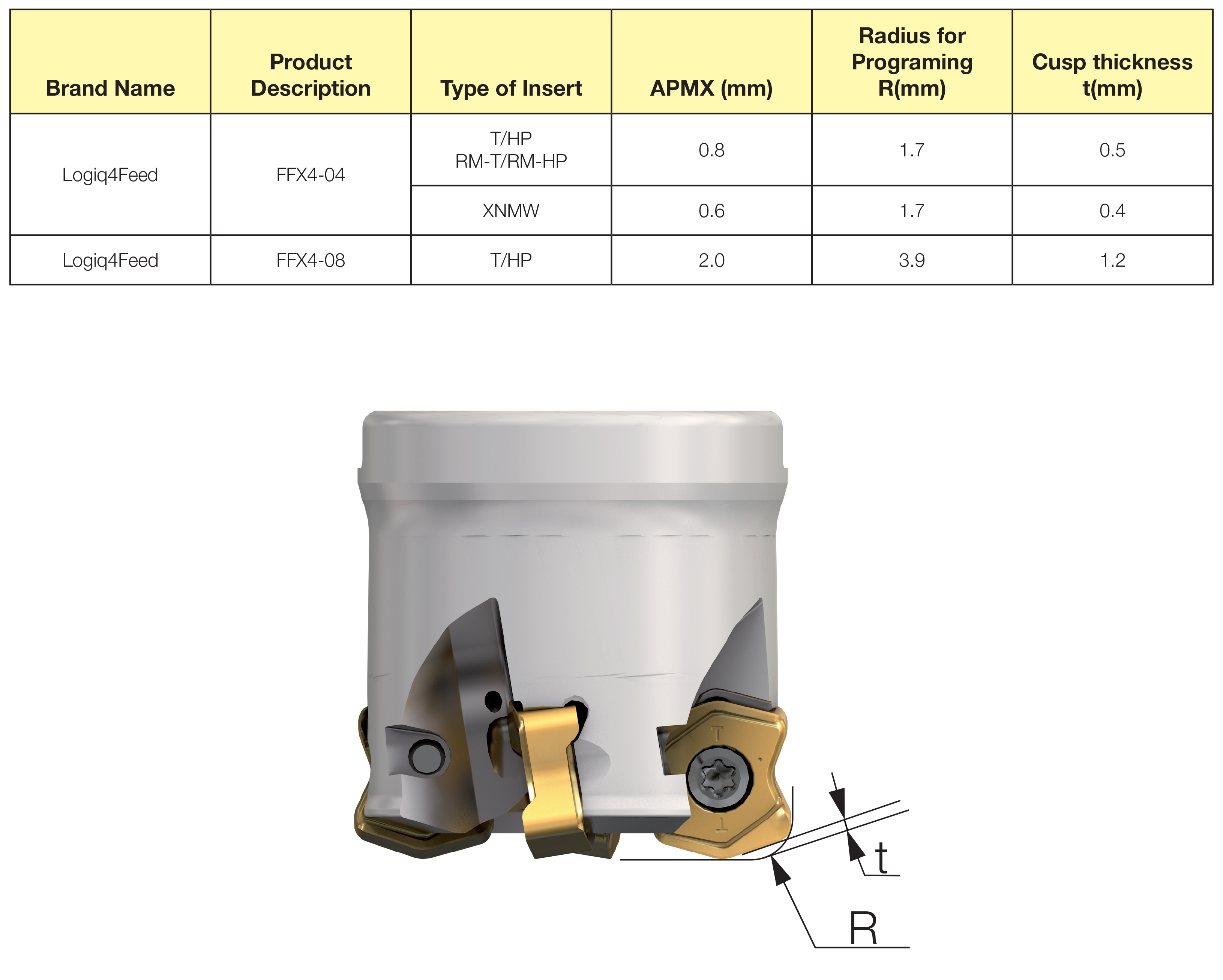

| Remarks | To generate a straight surface without cusps, the width of cut must not exceed DC Programming radius for inserts XNMU/XNMW: 1.7mm |
Shipping Info
Package Weight
1.812
