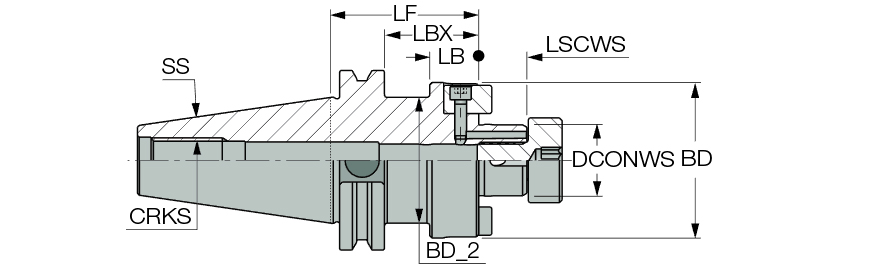

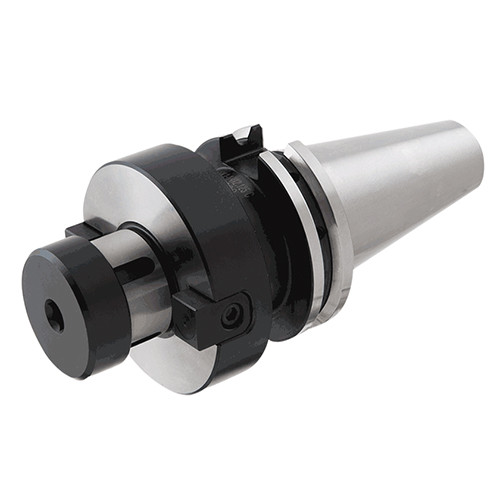

CAT50 FC SEM 1-1/4X3.500C
| Connection Diameter Workpiece Side (DCONWS) | 1-1/4″ | Material | Steel |
| Shank Size (SS) | 50 | Shell Mill Pilot Size | 1-1/2″ |
| Functional Length (LF) | 3-1/2″ | Flange Diameter (DF) | 3.380″ |
| Body Length (LB) | 3-1/2″ | Tool Type | BT |
| Body Diameter (BD) | 2.752″ | Measurement Type | Inch |
| Shank Type | CAT | Body Material | Steel |
| Overhang Length (L2) | 6″ | Protruding Length (LPR) | 6″ |
| Hex Size | 5/8″ | Connection Code Machine Side (CCMS) | CAT |
| Clamping Length Workpiece Side (LSCWS) | 0.67″ |
Product Features
| Family Description | Shell EndMill holders with coolant holes and Caterpillar face contact AD tapered shanks. | Country of Origin | Italy |
Shipping Info
Package Weight
10.756
