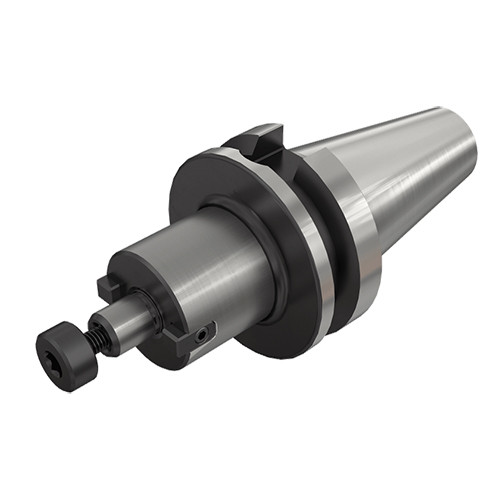

BT40 SEM 3/4X2.375
Shell Mill Holder; 40″ Shank Dia. ; 3/4″ Hole Dia. ; 1.772″ Body Dia. ; 2-3/8″ Body Length ; 40 Shank Size ; CAT Shank

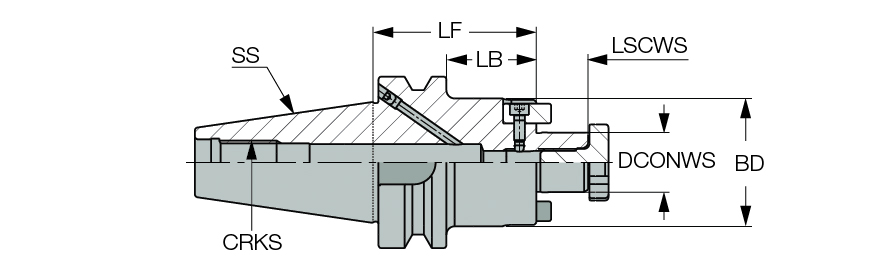

| Connection Diameter Machine Side (DCONMS) | 40″ | Clamping Length Workpiece Side (LSCWS) | 0.669″ |
| Connection Diameter Workpiece Side (DCONWS) | 3/4″ | Material | Steel |
| Shank Size (SS) | 40 | Shell Mill Pilot Size | 1-1/2″ |
| Functional Length (LF) | 2-3/8″ | Flange Diameter (DF) | 3.380″ |
| Body Length (LB) | 2-3/8″ | Tool Type | BT |
| Body Diameter (BD) | 1.772″ | Measurement Type | Inch |
| Shank Standard | BT | Body Material | Steel |
| Shank Type | CAT | Protruding Length (LPR) | 6″ |
| Overhang Length (L2) | 6″ | Connection Code Machine Side (CCMS) | BT |
| Hex Size | 5/8″ |
Product Features
| Family Description | ISO 3937 shell mill holders with BT MAS-403 ADB tapered shanks | Country of Origin | Turkey |
Shipping Info
Package Weight
5.18
