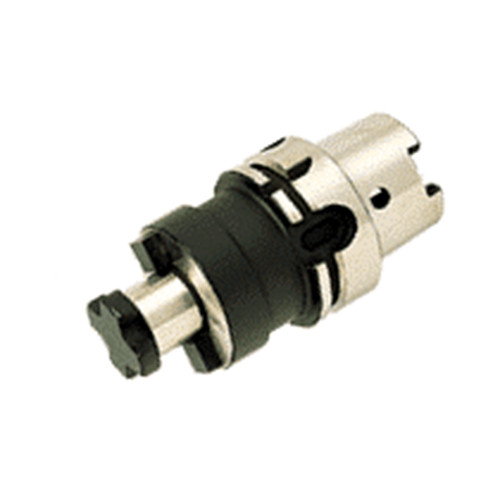

HSK A100 FM 2-1/2X2.875
Shell Mill Holder; 3.937″ Shank Dia. ; 2-1/2″ Hole Dia. ; 4.881″ Body Dia. ; 2-7/8″ Body Length ; 100 Shank Size ; CAT Shank

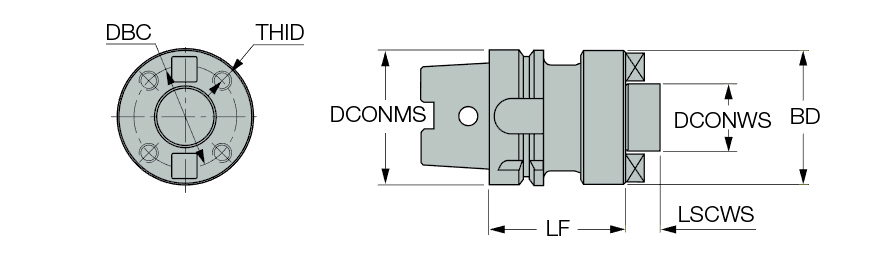

| Connection Diameter Machine Side (DCONMS) | 3.937″ | Clamping Length Workpiece Side (LSCWS) | 1.122″ |
| Connection Diameter Workpiece Side (DCONWS) | 2-1/2″ | Material | Steel |
| Shank Size (SS) | 100 | Shell Mill Pilot Size | 1-1/2″ |
| Functional Length (LF) | 2-7/8″ | Flange Diameter (DF) | 3.380″ |
| Body Length (LB) | 2-7/8″ | Tool Type | HSK |
| Body Diameter (BD) | 4.881″ | Measurement Type | Inch |
| Shank Standard | HSK A | Body Material | Steel |
| Shank Type | CAT | Protruding Length (LPR) | 6″ |
| Overhang Length (L2) | 6″ | Connection Code Machine Side (CCMS) | HSK |
| Hex Size | 5/8″ |
Product Features

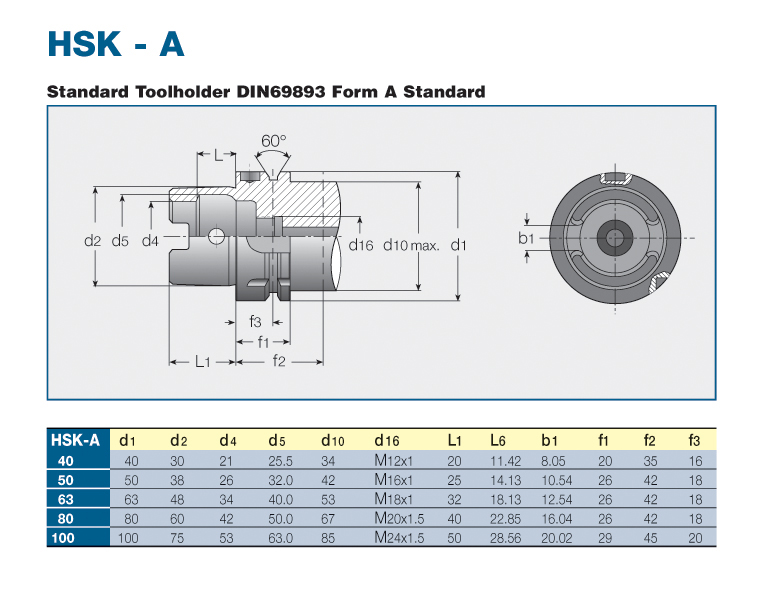

| Family Description | DIN 6357 face mill holders with HSK DIN 69893 form A tapered shanks. | Country of Origin | Italy |
| Remarks | A cooling tube must be used with all coolant through HSK spindles (to be ordered separately). |
Shipping Info
Package Weight
13.748
