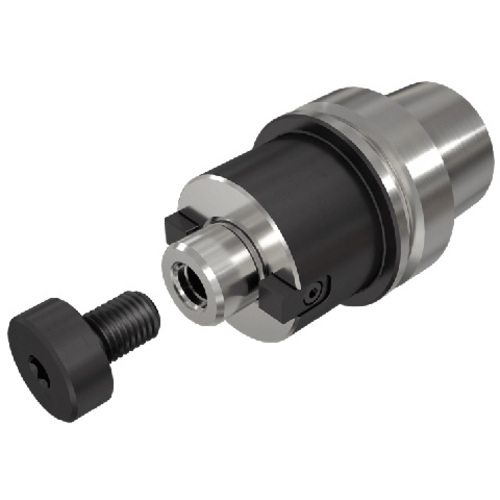

HSK E40 SEM 3/4X2.000
Shell Mill Holder; 1.575″ Shank Dia. ; 3/4″ Hole Dia. ; 1.771″ Body Dia. ; 2″ Body Length ; 40 Shank Size ; HSK Shank
| Connection Diameter Machine Side (DCONMS) | 1.575″ | Hex Size | 5/8″ |
| Connection Diameter Workpiece Side (DCONWS) | 3/4″ | Clamping Length Workpiece Side (LSCWS) | 0.669″ |
| Shank Size (SS) | 40 | Material | Steel |
| Functional Length (LF) | 2″ | Shell Mill Pilot Size | 1-1/2″ |
| Body Length (LB) | 2″ | Flange Diameter (DF) | 3.380″ |
| Body Diameter (BD) | 1.771″ | Tool Type | HSK |
| Shank Standard | HSK E | Measurement Type | Inch |
| Shank Type | HSK | Body Material | Steel |
| Overhang Length (L2) | 6″ | Protruding Length (LPR) | 6″ |
| Coolant Supply Property (CSP) | External | Connection Code Machine Side (CCMS) | HSK |
Product Features
| Family Description | ISO 3937 shell mill holders with HSK E DIN69893 form E tapered shanks. | Country of Origin | Israel |
| Remarks | A cooling tube must be used with all coolant through HSK spindles (to be ordered separately). |
Shipping Info
Package Weight
1.382
