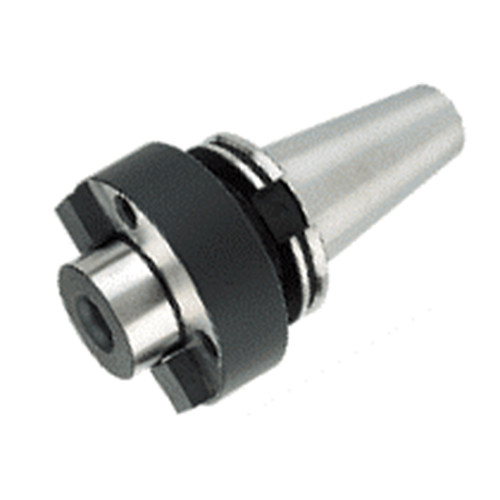

CAT50 FM 2-1/2X2.875
Shell Mill Holder; 50″ Shank Dia. ; 2-1/2″ Hole Dia. ; 4.881″ Body Dia. ; 2-7/8″ Body Length ; 50 Shank Size ; CAT Shank

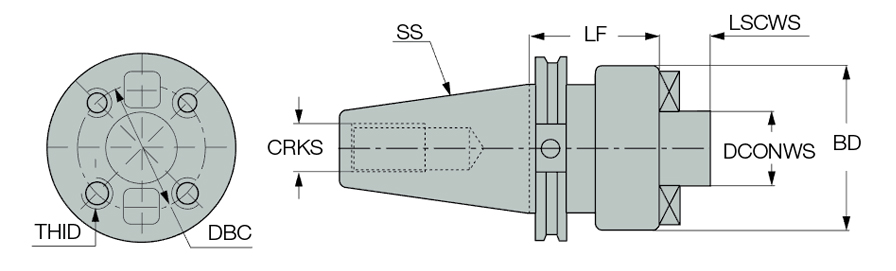

| Connection Diameter Machine Side (DCONMS) | 50″ | Clamping Length Workpiece Side (LSCWS) | 1-1/8″ |
| Connection Diameter Workpiece Side (DCONWS) | 2-1/2″ | Material | Steel |
| Shank Size (SS) | 50 | Shell Mill Pilot Size | 2-1/2″ |
| Functional Length (LF) | 2-7/8″ | Flange Diameter (DF) | 3.380″ |
| Body Length (LB) | 2-7/8″ | Tool Type | DIN 69871 |
| Body Diameter (BD) | 4.881″ | Measurement Type | Inch |
| Shank Standard | CAT | Body Material | Steel |
| Shank Type | CAT | Protruding Length (LPR) | 2.410″ |
| Overhang Length (L2) | 6″ | Connection Code Machine Side (CCMS) | CAT |
| Hex Size | 5/8″ |
Product Features
| Family Description | ISO face mill adapters with Caterpillar shanks. | Country of Origin | Italy |
Shipping Info
Package Weight
16.424
