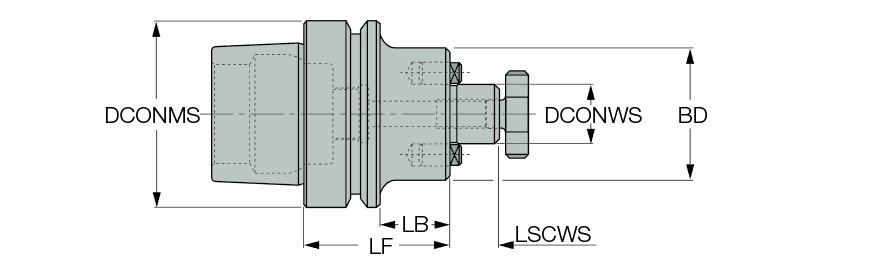

HSK E 63 SEM 3/4X2.375
| Connection Diameter Machine Side (DCONMS) | #50 | Hex Size | 5/8″ |
| Shank Size (SS) | CAT50 | Material | Steel |
| Functional Length (LF) | 2-3/8″ | Shell Mill Pilot Size | 1-1/2″ |
| Body Length (LB) | 1.351″ | Flange Diameter (DF) | 3.380″ |
| Shank Standard | HSK E | Tool Type | HSK |
| Shank Type | CAT | Measurement Type | Inch |
| Overhang Length (L2) | 6″ | Protruding Length (LPR) | 6″ |
| Coolant Supply Property (CSP) | Through Hole |
Product Features

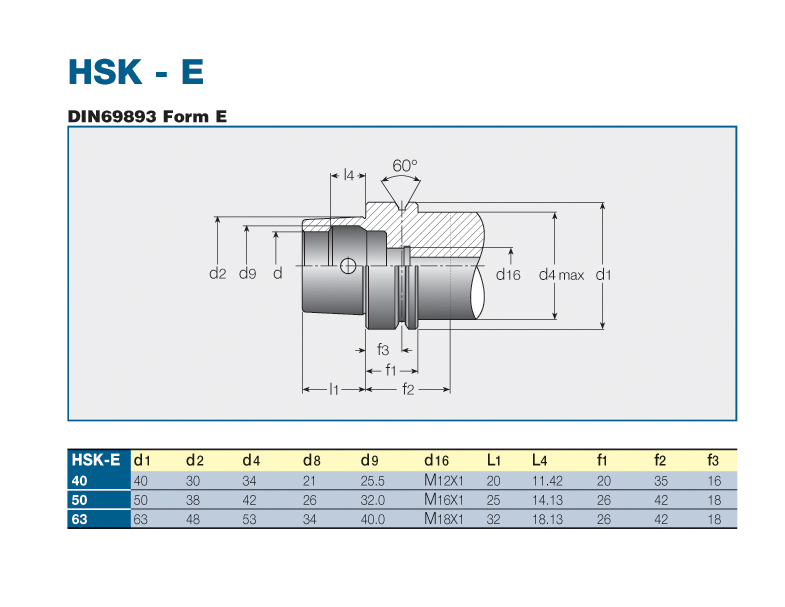

| Family Description | ISO 3937 shell mill holders with HSK E DIN69893 form E tapered shanks. | Country of Origin | IL |
| Remarks | A cooling tube must be used with all coolant through HSK spindles (should be ordered separately). |
Shipping Info
Package Weight
2.6900
