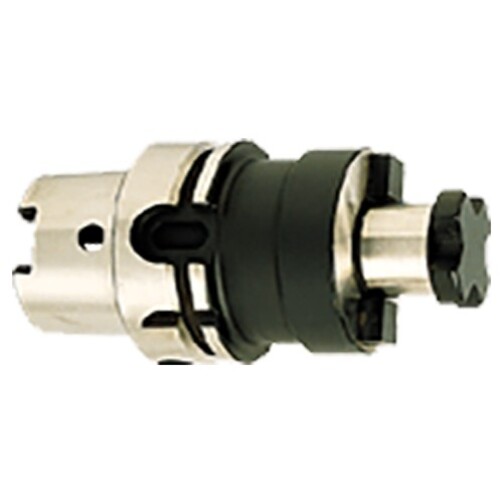

HSK A100 SEM2X2.375
| Connection Diameter Machine Side (DCONMS) | 3.937″ | Hex Size | 5/8″ |
| Connection Diameter Workpiece Side (DCONWS) | 2″ | Clamping Length Workpiece Side (LSCWS) | 0.94″ |
| Shank Size (SS) | 100 | Material | Steel |
| Functional Length (LF) | 2-3/8″ | Shell Mill Pilot Size | 1-1/2″ |
| Body Length (LB) | 2-3/8″ | Flange Diameter (DF) | 3.380″ |
| Body Diameter (BD) | 3.881″ | Tool Type | HSK |
| Shank Standard | HSK A | Measurement Type | Inch |
| Shank Type | CAT | Body Material | Steel |
| Overhang Length (L2) | 6″ | Protruding Length (LPR) | 6″ |
| Application | | HSK | |
Product Features
| Family Description | ISO 3937 shell mill holders with HSK DIN69893 form A tapered shanks. | Country of Origin | Italy |
| Remarks | A cooling tube must be used with all coolant through HSK spindles (should be ordered separately). |
Shipping Info
Package Weight
9.700
