BT50 FC SEM40X60 C

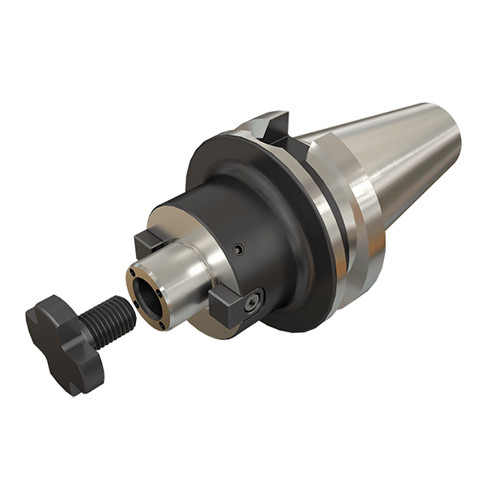

Shell Mill Holder; 50 mm Shank Dia. ; 40 mm Hole Dia. ; 82 mm Body Dia. ; 60 mm Body Length ; 50 Shank Size ; CAT Shank

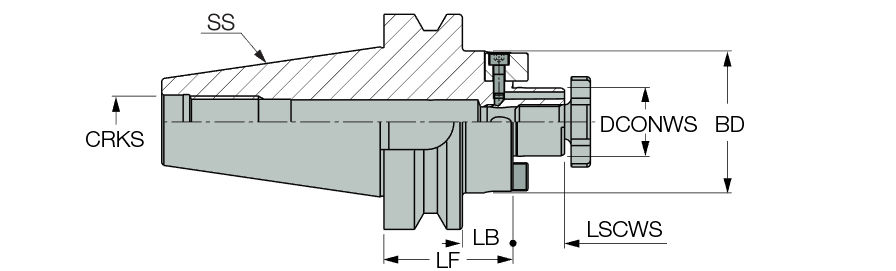

| Connection Diameter Machine Side (DCONMS) | 50 mm | Clamping Length Workpiece Side (LSCWS) | 27 mm |
| Connection Diameter Workpiece Side (DCONWS) | 40 mm | Material | Steel |
| Shank Size (SS) | 50 | Shell Mill Pilot Size | 1-1/2″ |
| Functional Length (LF) | 60 mm | Flange Diameter (DF) | 3.380″ |
| Body Length (LB) | 60 mm | Tool Type | BT |
| Body Diameter (BD) | 82 mm | Measurement Type | Metric |
| Shank Type | CAT | Body Material | Steel |
| Overhang Length (L2) | 6″ | Protruding Length (LPR) | 6″ |
| Coolant Supply Property (CSP) | Coolant Thru | Connection Code Machine Side (CCMS) | BT |
| Hex Size | 5/8″ |
Product Features

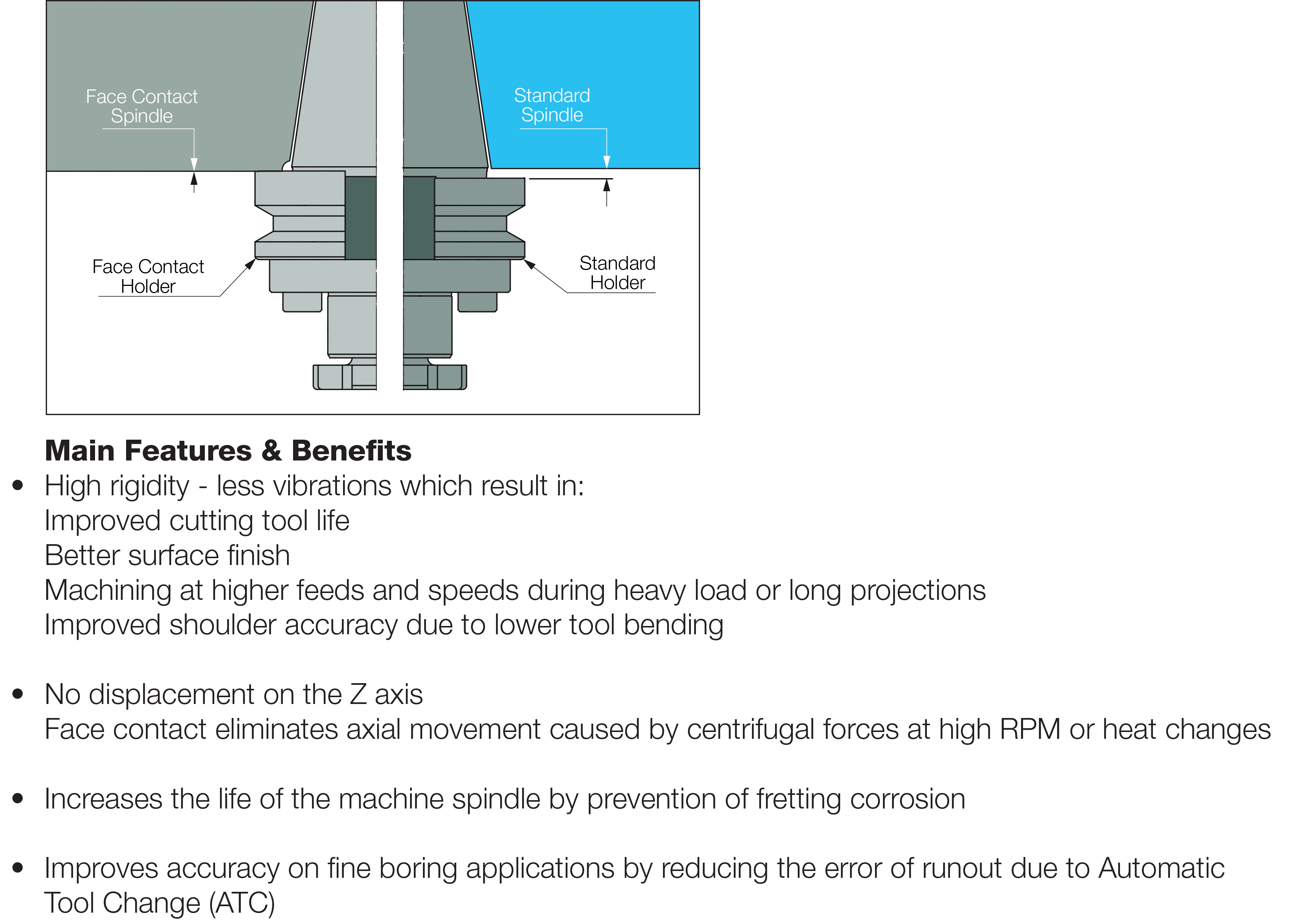

| Family Description | Shell endmill holders with coolant holes and BT MAS-403 face contact AD tapered shanks. | Country of Origin | Italy |
| Remarks | For adaptation details, click on More Info. |
Shipping Info
Package Weight
10.977
