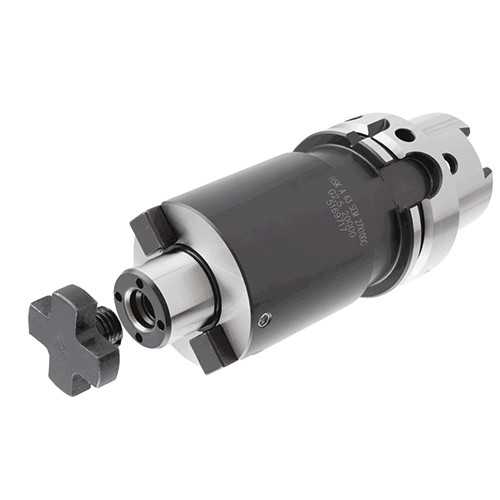

HSK A100 SEM22X100C
Shell Mill Holder; 100 mm Shank Dia. ; 22 mm Hole Dia. ; 47 mm Body Dia. ; 100 mm Body Length ; 100 Shank Size ; CAT Shank

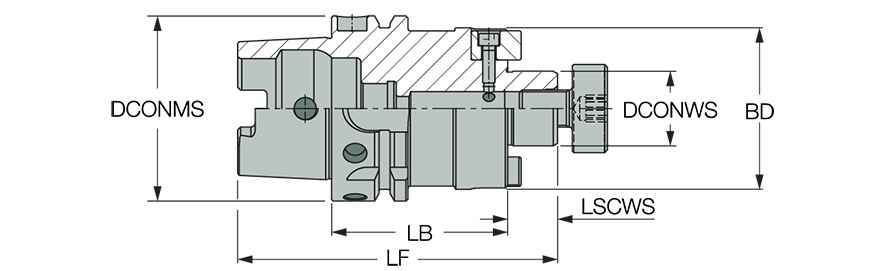

| Connection Diameter Machine Side (DCONMS) | 100 mm | Material | Steel |
| Connection Diameter Workpiece Side (DCONWS) | 22 mm | Shell Mill Pilot Size | 1-1/2″ |
| Shank Size (SS) | 100 | Flange Diameter (DF) | 3.380″ |
| Body Length (LB) | 100 mm | Tool Type | HSK |
| Shank Standard | HSK A | Measurement Type | Metric |
| Shank Type | CAT | Body Material | Steel |
| Overhang Length (L2) | 6″ | Protruding Length (LPR) | 6″ |

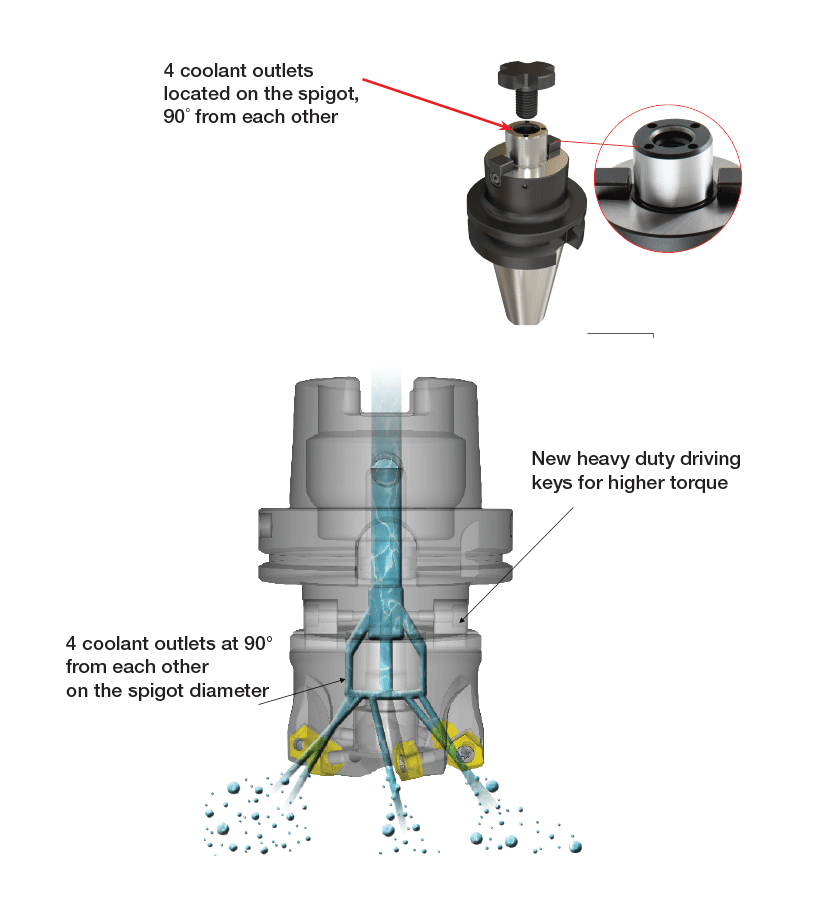

| Coolant Supply Property (CSP) | Coolant Thru | Connection Code Machine Side (CCMS) | HSK |
| Hex Size | 5/8″ |
Product Features
| Family Description | Shell mill holders with coolant holes and DIN69893 form A HSK tapered shanks. Symmetrical design, dynamically balanced for high RPM machining. | Country of Origin | Italy |
| Remarks | A cooling tube must be used with all coolant through HSK spindles (to be ordered separately). |
Shipping Info
Package Weight
7.017
